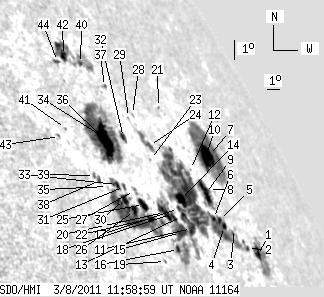

SDO HMI 2011-03-08 11:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.77 | 755.69 | 190.99 | 1105.93 | 23.48 | 163.87 | 64.21 | 298.39 | 0.9388 | 18.0 | -29.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-08 11:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.77 | 27.96 | 5.11 | 52.53 | 21.90 | 169.59 | 69.93 | 295.20 | 0.9644 | -384.5 | 26.0 | |
| 1.13 | 305.22 | 1.99 | 451.69 | 22.03 | 168.81 | 69.14 | 295.53 | 0.9612 | -257.8 | -310.5 | |
| 0.00 | 1.56 | 0.00 | 2.70 | 22.59 | 168.23 | 68.57 | 296.24 | 0.9594 | 308.0 | 251.2 | |
| 1.64 | -2.00 | 2.72 | -2.00 | 22.58 | 167.35 | 67.69 | 296.46 | 0.9555 | -451.3 | 999999 | |
| 1.82 | -2.00 | 2.98 | -2.00 | 22.75 | 167.09 | 67.43 | 296.70 | 0.9545 | -462.9 | 999999 | |
| 1.38 | -2.00 | 2.22 | -2.00 | 22.76 | 166.59 | 66.93 | 296.84 | 0.9522 | -689.5 | 999999 | |
| 3.90 | 92.79 | 7.32 | 173.05 | 25.17 | 168.93 | 69.27 | 298.63 | 0.9657 | 460.9 | 44.9 | |
| 0.78 | 19.91 | 1.31 | 32.59 | 23.81 | 167.26 | 67.60 | 297.72 | 0.9568 | 179.3 | -301.5 | |
| 11.77 | -8.00 | 19.30 | -8.00 | 23.62 | 166.80 | 67.14 | 297.65 | 0.9545 | -445.9 | 999999 | |
| 12.29 | -7.00 | 22.41 | -7.00 | 25.03 | 168.40 | 68.74 | 298.64 | 0.9633 | -648.9 | 999999 | |
| 5.37 | -2.00 | 7.68 | -2.00 | 22.15 | 164.28 | 64.62 | 296.87 | 0.9396 | -652.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 1.12 | 24.37 | 166.34 | 66.68 | 298.53 | 0.9535 | -455.0 | -427.5 | |
| 1.90 | -2.00 | 2.69 | -2.00 | 22.49 | 163.83 | 64.17 | 297.36 | 0.9378 | 144.0 | 999999 | |
| 4.85 | -2.00 | 7.04 | -2.00 | 23.12 | 164.31 | 64.64 | 297.85 | 0.9415 | 505.2 | 999999 | |
| 11.34 | -2.00 | 15.53 | -2.00 | 21.89 | 163.25 | 63.59 | 296.92 | 0.9336 | -344.2 | 999999 | |
| 2.42 | -2.00 | 3.20 | -2.00 | 21.25 | 162.60 | 62.94 | 296.46 | 0.9286 | 461.0 | 999999 | |
| 1.64 | -2.00 | 2.33 | -2.00 | 22.76 | 163.84 | 64.17 | 297.63 | 0.9384 | 324.5 | 999999 | |
| 3.81 | -2.00 | 5.20 | -2.00 | 22.46 | 162.99 | 63.33 | 297.57 | 0.9332 | -131.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.76 | 20.71 | 161.29 | 61.63 | 296.30 | 0.9198 | -220.0 | -224.6 | |
| 7.88 | -2.00 | 10.58 | -2.00 | 22.48 | 162.57 | 62.91 | 297.72 | 0.9309 | 230.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.57 | 26.44 | 165.95 | 66.29 | 300.72 | 0.9549 | 279.0 | 261.2 | |
| 4.15 | 99.81 | 5.30 | 123.24 | 22.13 | 161.32 | 61.66 | 297.76 | 0.9230 | 490.9 | 436.4 | |
| 0.00 | 0.95 | 0.00 | 1.34 | 24.33 | 163.16 | 63.50 | 299.42 | 0.9377 | 186.0 | 164.3 | |
| 1.64 | 10.30 | 2.37 | 14.81 | 24.85 | 163.58 | 63.92 | 299.83 | 0.9409 | 105.3 | 82.5 | |
| 6.23 | -22.00 | 7.94 | -22.00 | 22.58 | 161.19 | 61.53 | 298.27 | 0.9232 | 422.3 | 999999 | |
| 4.59 | -22.00 | 5.67 | -22.00 | 22.29 | 160.36 | 60.70 | 298.23 | 0.9176 | 602.0 | 999999 | |
| 0.00 | 2.86 | 0.00 | 3.63 | 23.02 | 160.92 | 61.26 | 298.80 | 0.9226 | 373.0 | 297.0 | |
| 0.00 | 1.21 | 0.00 | 1.76 | 25.88 | 163.30 | 63.63 | 300.95 | 0.9414 | -124.0 | -45.2 | |
| 0.00 | 0.69 | 0.00 | 0.98 | 25.73 | 162.84 | 63.18 | 300.93 | 0.9388 | -83.0 | -90.6 | |
| 4.33 | -22.00 | 5.29 | -22.00 | 22.61 | 159.94 | 60.28 | 298.70 | 0.9158 | 718.5 | 999999 | |
| 0.78 | 2.25 | 0.97 | 2.80 | 23.08 | 160.30 | 60.63 | 299.07 | 0.9190 | 424.7 | 350.7 | |
| 3.03 | 4.85 | 4.07 | 6.52 | 24.91 | 161.73 | 62.07 | 300.46 | 0.9313 | 226.0 | 265.0 | |
| 3.03 | 7.27 | 3.70 | 8.86 | 23.09 | 159.77 | 60.11 | 299.26 | 0.9159 | 576.1 | 553.8 | |
| 1.38 | 122.23 | 1.78 | 155.42 | 24.61 | 160.64 | 60.98 | 300.52 | 0.9245 | -296.5 | 235.1 | |
| 0.00 | 0.43 | 0.00 | 0.52 | 22.94 | 159.08 | 59.42 | 299.34 | 0.9113 | 513.0 | 531.2 | |
| 18.70 | -34.00 | 23.71 | -34.00 | 24.63 | 160.25 | 60.59 | 300.68 | 0.9224 | 709.5 | 999999 | |
| 0.00 | 2.16 | 0.00 | 3.03 | 26.70 | 162.03 | 62.37 | 302.17 | 0.9366 | 276.0 | 312.3 | |
| 1.38 | 2.51 | 1.63 | 2.96 | 23.10 | 158.68 | 59.02 | 299.65 | 0.9092 | 558.8 | 540.9 | |
| 0.00 | 2.08 | 0.00 | 2.43 | 23.24 | 158.47 | 58.81 | 299.87 | 0.9082 | 490.0 | 426.8 | |
| 1.13 | 18.96 | 1.53 | 25.96 | 27.38 | 160.97 | 61.30 | 303.21 | 0.9326 | -192.5 | 298.3 | |
| 0.00 | 1.04 | 0.00 | 1.22 | 24.76 | 157.76 | 58.10 | 301.69 | 0.9078 | 203.0 | 243.1 | |
| 3.98 | 22.42 | 5.22 | 29.58 | 27.54 | 159.94 | 60.28 | 303.72 | 0.9275 | -553.5 | -101.8 | |
| 0.00 | 1.56 | 0.00 | 1.78 | 24.41 | 157.14 | 57.48 | 301.57 | 0.9029 | 424.0 | 382.6 | |
| 1.73 | 2.42 | 2.20 | 3.08 | 27.25 | 159.27 | 59.61 | 303.67 | 0.9231 | -374.3 | -252.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
