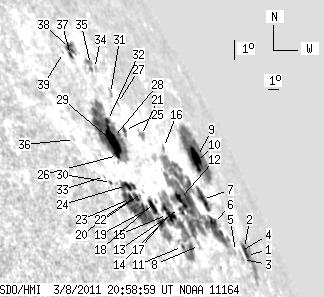

SDO HMI 2011-03-08 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.37 | 533.95 | 156.68 | 996.68 | 23.52 | 164.09 | 69.39 | 297.02 | 0.9628 | 49.2 | -14.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-08 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 21.72 | 4.94 | 57.95 | 22.03 | 169.75 | 75.04 | 294.18 | 0.9826 | -71.1 | 82.7 | |
| 1.38 | -1.00 | 3.68 | -1.00 | 22.27 | 169.88 | 75.17 | 294.40 | 0.9832 | 228.4 | 999999 | |
| 0.00 | 1.56 | 0.00 | 3.81 | 21.79 | 168.90 | 74.20 | 294.12 | 0.9799 | -315.0 | -324.8 | |
| 0.00 | 2.08 | 0.00 | 5.15 | 22.07 | 169.07 | 74.37 | 294.37 | 0.9807 | -231.0 | -128.8 | |
| 0.00 | 0.87 | 0.00 | 2.03 | 21.98 | 168.35 | 73.65 | 294.43 | 0.9783 | -252.0 | -232.0 | |
| 5.54 | 211.97 | 11.83 | 396.42 | 22.73 | 166.91 | 72.21 | 295.49 | 0.9740 | -497.3 | -233.0 | |
| 8.13 | 13.93 | 17.58 | 30.37 | 23.51 | 166.79 | 72.08 | 296.30 | 0.9743 | -355.3 | 68.0 | |
| 0.00 | 2.51 | 0.00 | 4.51 | 21.67 | 164.26 | 69.55 | 295.07 | 0.9625 | -331.0 | -317.1 | |
| 3.55 | 66.53 | 9.14 | 169.53 | 25.21 | 168.78 | 74.08 | 297.54 | 0.9822 | 399.9 | 8.0 | |
| 8.05 | -9.00 | 19.74 | -9.00 | 24.97 | 168.28 | 73.58 | 297.42 | 0.9805 | -505.8 | 999999 | |
| 1.21 | -6.00 | 1.98 | -6.00 | 21.42 | 162.49 | 67.78 | 295.26 | 0.9543 | 360.8 | 999999 | |
| 4.24 | -6.00 | 7.74 | -6.00 | 23.17 | 164.07 | 69.37 | 296.62 | 0.9636 | 236.0 | 999999 | |
| 0.35 | -6.00 | 0.62 | -6.00 | 22.82 | 163.68 | 68.98 | 296.37 | 0.9615 | 265.2 | 999999 | |
| 4.15 | -6.00 | 6.96 | -6.00 | 22.53 | 162.65 | 67.95 | 296.34 | 0.9566 | -180.0 | 999999 | |
| 5.97 | -6.00 | 9.79 | -6.00 | 22.45 | 162.22 | 67.52 | 296.37 | 0.9545 | 204.4 | 999999 | |
| 0.00 | 2.08 | 0.00 | 4.06 | 25.01 | 164.81 | 70.10 | 298.27 | 0.9687 | -424.0 | -468.0 | |
| 3.72 | 86.09 | 5.80 | 128.57 | 22.04 | 161.32 | 66.62 | 296.20 | 0.9496 | 439.8 | 407.4 | |
| 0.00 | 1.38 | 0.00 | 2.21 | 22.80 | 161.57 | 66.86 | 296.90 | 0.9520 | 92.0 | 24.3 | |
| 6.23 | -17.00 | 9.70 | -17.00 | 22.58 | 161.10 | 66.40 | 296.80 | 0.9494 | 315.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.60 | 22.99 | 160.70 | 65.99 | 297.34 | 0.9481 | 218.0 | 233.8 | |
| 0.00 | 4.85 | 0.00 | 8.62 | 25.19 | 162.97 | 68.27 | 298.93 | 0.9616 | -90.0 | -54.0 | |
| 3.37 | -17.00 | 5.00 | -17.00 | 22.77 | 159.93 | 65.23 | 297.33 | 0.9439 | 597.6 | 999999 | |
| 2.16 | -17.00 | 3.14 | -17.00 | 22.64 | 159.43 | 64.73 | 297.35 | 0.9411 | 814.8 | 999999 | |
| 4.93 | -17.00 | 7.20 | -17.00 | 23.09 | 159.53 | 64.82 | 297.77 | 0.9424 | 580.2 | 999999 | |
| 1.47 | 3.55 | 2.43 | 5.84 | 25.18 | 161.48 | 66.77 | 299.32 | 0.9552 | 114.9 | 92.0 | |
| 1.21 | 90.76 | 1.82 | 138.91 | 24.13 | 159.82 | 65.11 | 298.74 | 0.9456 | 564.3 | 228.1 | |
| 0.00 | 1.30 | 0.00 | 2.24 | 26.17 | 162.01 | 67.31 | 300.16 | 0.9590 | 221.0 | 171.0 | |
| 1.12 | -26.00 | 1.74 | -26.00 | 24.78 | 160.15 | 65.45 | 299.30 | 0.9484 | -213.8 | 999999 | |
| 9.86 | -26.00 | 15.02 | -26.00 | 24.61 | 159.90 | 65.20 | 299.20 | 0.9469 | 569.0 | 999999 | |
| 0.26 | 1.38 | 0.36 | 1.92 | 23.05 | 158.36 | 63.66 | 298.08 | 0.9362 | 410.7 | 408.3 | |
| 0.00 | 2.60 | 0.00 | 4.45 | 26.48 | 161.78 | 67.08 | 300.54 | 0.9585 | 460.0 | 363.0 | |
| 1.21 | -26.00 | 1.89 | -26.00 | 25.38 | 160.29 | 65.58 | 299.86 | 0.9500 | 211.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.43 | 23.20 | 157.99 | 63.28 | 298.35 | 0.9345 | 479.0 | 449.6 | |
| 0.00 | 0.87 | 0.00 | 1.47 | 27.30 | 161.39 | 66.69 | 301.46 | 0.9580 | 402.0 | 328.0 | |
| 0.00 | 4.50 | 0.00 | 7.59 | 27.42 | 161.19 | 66.48 | 301.64 | 0.9573 | 250.0 | 185.1 | |
| 0.00 | 0.61 | 0.00 | 0.81 | 24.31 | 156.80 | 62.09 | 299.86 | 0.9302 | 498.0 | 466.6 | |
| 0.69 | 9.86 | 1.09 | 15.85 | 27.55 | 159.69 | 64.99 | 302.21 | 0.9510 | 48.5 | -229.6 | |
| 4.67 | -37.00 | 7.49 | -37.00 | 27.82 | 159.92 | 65.22 | 302.41 | 0.9525 | -481.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.34 | 27.59 | 159.18 | 64.48 | 302.40 | 0.9487 | -180.0 | -194.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
