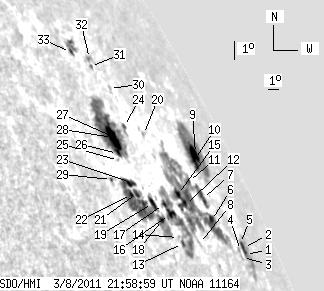

SDO HMI 2011-03-08 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.07 | 499.44 | 130.84 | 963.42 | 23.53 | 164.47 | 70.31 | 296.80 | 0.9665 | 77.3 | -11.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-08 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 23.36 | 4.73 | 65.24 | 21.97 | 169.78 | 75.63 | 294.01 | 0.9843 | -110.1 | 48.3 | |
| 2.77 | -1.00 | 7.69 | -1.00 | 22.22 | 169.92 | 75.77 | 294.23 | 0.9848 | 168.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 4.02 | 21.79 | 169.11 | 74.96 | 293.97 | 0.9822 | -312.0 | -264.3 | |
| 0.00 | 1.56 | 0.00 | 4.05 | 22.03 | 169.23 | 75.08 | 294.18 | 0.9828 | -113.0 | -150.7 | |
| 0.26 | -1.00 | 0.71 | -1.00 | 22.32 | 169.69 | 75.54 | 294.38 | 0.9843 | -66.7 | 999999 | |
| 4.07 | 216.75 | 8.99 | 422.58 | 22.72 | 166.81 | 72.65 | 295.39 | 0.9756 | -476.5 | -217.8 | |
| 4.07 | -6.00 | 9.16 | -6.00 | 23.45 | 166.83 | 72.68 | 296.11 | 0.9763 | -328.9 | 999999 | |
| 0.00 | 1.90 | 0.00 | 3.54 | 21.64 | 164.26 | 70.11 | 294.90 | 0.9648 | -317.0 | -296.6 | |
| 3.72 | 60.83 | 10.03 | 161.75 | 25.21 | 168.75 | 74.60 | 297.43 | 0.9837 | 382.9 | 11.0 | |
| 8.39 | -9.00 | 21.36 | -9.00 | 24.93 | 168.16 | 74.01 | 297.29 | 0.9818 | -467.4 | 999999 | |
| 0.78 | -6.00 | 1.67 | -6.00 | 23.91 | 165.96 | 71.80 | 296.77 | 0.9738 | -292.1 | 999999 | |
| 1.56 | -6.00 | 2.97 | -6.00 | 22.95 | 164.43 | 70.27 | 296.18 | 0.9670 | -275.3 | 999999 | |
| 1.99 | -6.00 | 3.35 | -6.00 | 21.42 | 162.47 | 68.32 | 295.13 | 0.9568 | 301.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.59 | 21.60 | 162.30 | 68.15 | 295.35 | 0.9562 | 366.0 | 322.2 | |
| 2.60 | -6.00 | 4.87 | -6.00 | 23.23 | 163.99 | 69.84 | 296.56 | 0.9656 | 256.8 | 999999 | |
| 2.42 | -6.00 | 4.09 | -6.00 | 22.36 | 162.29 | 68.14 | 296.12 | 0.9572 | 221.9 | 999999 | |
| 1.04 | -6.00 | 1.74 | -6.00 | 22.66 | 162.09 | 67.93 | 296.48 | 0.9567 | 219.2 | 999999 | |
| 1.56 | 87.05 | 2.50 | 133.26 | 22.08 | 161.41 | 67.26 | 296.07 | 0.9528 | 411.3 | 396.4 | |
| 5.11 | -18.00 | 8.15 | -18.00 | 22.57 | 161.06 | 66.91 | 296.66 | 0.9518 | 282.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 3.34 | 25.14 | 163.11 | 68.96 | 298.70 | 0.9644 | 86.0 | 70.8 | |
| 2.86 | -18.00 | 4.34 | -18.00 | 22.77 | 159.95 | 65.80 | 297.17 | 0.9468 | 590.0 | 999999 | |
| 1.64 | -18.00 | 2.44 | -18.00 | 22.68 | 159.47 | 65.32 | 297.22 | 0.9442 | 780.8 | 999999 | |
| 4.41 | -18.00 | 6.68 | -18.00 | 23.12 | 159.80 | 65.65 | 297.57 | 0.9466 | 500.0 | 999999 | |
| 1.56 | 4.07 | 2.64 | 6.87 | 25.22 | 161.50 | 67.34 | 299.20 | 0.9577 | 141.1 | 113.5 | |
| 0.00 | 0.95 | 0.00 | 1.44 | 23.83 | 159.54 | 65.38 | 298.36 | 0.9465 | 525.0 | 528.8 | |
| 0.69 | 80.99 | 1.06 | 126.56 | 24.08 | 159.71 | 65.56 | 298.57 | 0.9478 | 616.6 | 281.2 | |
| 2.16 | -26.00 | 3.42 | -26.00 | 24.65 | 160.21 | 66.06 | 299.00 | 0.9511 | -192.0 | 999999 | |
| 9.60 | -26.00 | 14.97 | -26.00 | 24.65 | 159.88 | 65.73 | 299.08 | 0.9495 | 559.6 | 999999 | |
| 0.69 | 1.64 | 0.98 | 2.33 | 23.04 | 158.26 | 64.11 | 297.93 | 0.9386 | 466.0 | 426.5 | |
| 0.00 | 1.82 | 0.00 | 3.21 | 26.55 | 161.77 | 67.62 | 300.46 | 0.9608 | 296.0 | 298.1 | |
| 0.61 | 1.47 | 1.04 | 2.52 | 27.21 | 160.91 | 66.76 | 301.35 | 0.9582 | -94.9 | -28.3 | |
| 0.00 | 2.25 | 0.00 | 3.91 | 27.52 | 161.21 | 67.06 | 301.58 | 0.9599 | 365.0 | 261.5 | |
| 0.78 | 10.47 | 1.26 | 17.21 | 27.54 | 159.63 | 65.48 | 302.05 | 0.9532 | 51.6 | -307.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
