SDO HMI 2011-03-08 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.49 | 465.63 | 136.43 | 924.27 | 23.51 | 164.38 | 70.78 | 296.66 | 0.9683 | 23.3 | 9.3 | |
|
previous
or next observation for the same group /

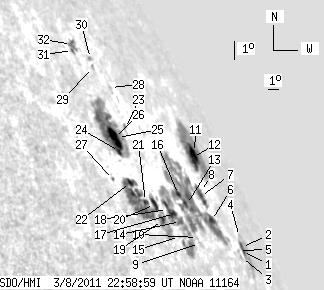

back to the solar disc SDO HMI 2011-03-08 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 16.79 | 1.24 | 49.78 | 22.06 | 169.66 | 76.06 | 294.02 | 0.9855 | -36.4 | 85.9 | |
| 2.42 | -1.00 | 7.05 | -1.00 | 22.21 | 169.77 | 76.16 | 294.14 | 0.9859 | 146.4 | 999999 | |
| 0.00 | 1.38 | 0.00 | 3.72 | 21.79 | 169.09 | 75.49 | 293.86 | 0.9838 | -335.0 | -262.8 | |
| 0.00 | 1.30 | 0.00 | 3.96 | 22.63 | 170.22 | 76.62 | 294.47 | 0.9873 | 178.0 | 177.2 | |
| 0.00 | 1.12 | 0.00 | 3.04 | 22.02 | 169.06 | 75.45 | 294.09 | 0.9838 | -242.0 | -193.6 | |
| 2.77 | 133.61 | 6.40 | 277.82 | 22.73 | 166.84 | 73.24 | 295.27 | 0.9776 | -405.2 | -235.4 | |
| 6.66 | 10.90 | 15.52 | 25.54 | 23.51 | 166.71 | 73.11 | 296.07 | 0.9778 | -315.1 | -52.2 | |
| 0.78 | -7.00 | 1.86 | -7.00 | 23.71 | 167.01 | 73.41 | 296.21 | 0.9790 | 127.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 2.48 | 21.64 | 164.20 | 70.59 | 294.78 | 0.9668 | -265.0 | -244.2 | |
| 0.00 | 0.87 | 0.00 | 1.66 | 21.84 | 164.23 | 70.63 | 294.98 | 0.9672 | -334.0 | -340.5 | |
| 3.37 | 58.15 | 9.50 | 162.46 | 25.25 | 168.81 | 75.21 | 297.35 | 0.9853 | 341.4 | 20.7 | |
| 6.23 | -11.00 | 16.62 | -11.00 | 24.99 | 168.10 | 74.50 | 297.24 | 0.9832 | -432.5 | 999999 | |
| 1.47 | -6.00 | 2.91 | -6.00 | 22.97 | 164.49 | 70.89 | 296.04 | 0.9694 | -223.5 | 999999 | |
| 4.07 | 56.94 | 7.33 | 101.00 | 22.22 | 163.04 | 69.44 | 295.65 | 0.9628 | -265.4 | -57.2 | |
| 0.00 | 1.04 | 0.00 | 1.79 | 21.64 | 162.33 | 68.73 | 295.24 | 0.9589 | 305.0 | 278.8 | |
| 1.73 | -6.00 | 3.35 | -6.00 | 23.24 | 164.04 | 70.44 | 296.43 | 0.9680 | 248.1 | 999999 | |
| 2.51 | -14.00 | 4.46 | -14.00 | 22.45 | 162.74 | 69.14 | 295.95 | 0.9618 | -161.4 | 999999 | |
| 3.98 | -14.00 | 6.89 | -14.00 | 22.51 | 162.18 | 68.57 | 296.16 | 0.9594 | 200.7 | 999999 | |
| 3.81 | 18.69 | 6.23 | 30.75 | 22.03 | 161.25 | 67.64 | 295.92 | 0.9545 | 412.9 | 127.6 | |
| 5.11 | 65.16 | 8.37 | 100.83 | 22.54 | 161.08 | 67.47 | 296.48 | 0.9545 | 291.6 | 470.1 | |
| 2.34 | -20.00 | 3.69 | -20.00 | 22.55 | 160.33 | 66.73 | 296.69 | 0.9510 | 454.3 | 999999 | |
| 3.29 | -20.00 | 5.09 | -20.00 | 23.10 | 159.64 | 66.04 | 297.44 | 0.9485 | 480.4 | 999999 | |
| 0.00 | 3.03 | 0.00 | 5.25 | 25.14 | 161.39 | 67.78 | 299.00 | 0.9595 | 287.0 | 137.5 | |
| 1.30 | 81.43 | 2.05 | 130.51 | 24.17 | 159.81 | 66.21 | 298.46 | 0.9510 | 562.0 | 247.4 | |
| 2.60 | -24.00 | 4.21 | -24.00 | 24.69 | 160.20 | 66.59 | 298.88 | 0.9536 | -174.2 | 999999 | |
| 8.74 | -24.00 | 13.95 | -24.00 | 24.65 | 159.91 | 66.31 | 298.92 | 0.9522 | 545.5 | 999999 | |
| 1.04 | 1.12 | 1.51 | 1.63 | 23.04 | 158.25 | 64.65 | 297.77 | 0.9414 | 403.2 | 425.0 | |
| 0.00 | 1.21 | 0.00 | 2.20 | 26.59 | 161.82 | 68.21 | 300.34 | 0.9633 | 291.0 | 308.1 | |
| 0.00 | 1.73 | 0.00 | 3.04 | 27.18 | 160.94 | 67.34 | 301.16 | 0.9606 | -152.0 | -75.9 | |
| 0.00 | 1.47 | 0.00 | 2.62 | 27.52 | 161.20 | 67.60 | 301.43 | 0.9621 | 323.0 | 275.0 | |
| 0.69 | 8.39 | 1.16 | 14.19 | 27.63 | 159.77 | 66.17 | 301.94 | 0.9563 | -185.2 | -275.1 | |
| 4.15 | -31.00 | 7.04 | -31.00 | 27.86 | 159.97 | 66.37 | 302.11 | 0.9576 | -412.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
