SDO HMI 2011-04-25 17:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.78 | 20.53 | 3.07 | 10.89 | 15.52 | 177.45 | -5.64 | 15.29 | 0.3601 | -182.2 | -147.1 | |
|
previous
or next observation for the same group /

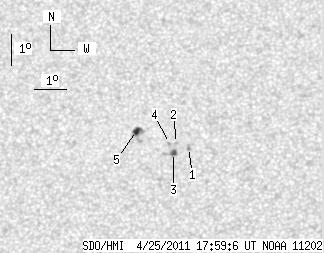

back to the solar disc SDO HMI 2011-04-25 17:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.40 | 0.00 | 1.27 | 15.26 | 178.48 | -4.62 | 12.81 | 0.3518 | -982.0 | -791.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 15.39 | 178.10 | -4.99 | 13.73 | 0.3553 | -645.0 | -549.6 | |
| 1.51 | 5.42 | 0.80 | 2.87 | 15.10 | 178.01 | -5.08 | 14.16 | 0.3511 | -1062.4 | -740.2 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 15.39 | 177.88 | -5.21 | 14.30 | 0.3562 | -778.0 | -533.4 | |
| 4.27 | 10.49 | 2.27 | 5.58 | 15.82 | 176.83 | -6.26 | 16.68 | 0.3675 | 946.6 | 610.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
