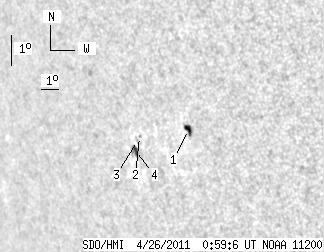

SDO HMI 2011-04-26 00:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.36 | 13.78 | 7.49 | 12.50 | -17.32 | 122.51 | -56.71 | 107.64 | 0.8392 | -38.7 | -254.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-26 00:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.16 | 6.31 | 4.47 | 5.47 | -17.11 | 124.31 | -54.92 | 107.60 | 0.8227 | 556.7 | 366.1 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -17.14 | 121.48 | -57.74 | 107.31 | 0.8485 | -648.0 | -512.2 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -17.26 | 121.31 | -57.91 | 107.43 | 0.8501 | -530.0 | -496.8 | |
| 3.20 | 5.96 | 3.02 | 5.62 | -17.55 | 121.04 | -58.18 | 107.75 | 0.8527 | -555.6 | -357.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
