SDO HMI 2011-04-26 04:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.23 | 0.00 | 5.39 | 15.27 | 178.17 | 1.14 | 356.71 | 0.3439 | 62.0 | -265.8 | |
|
previous
or next observation for the same group /

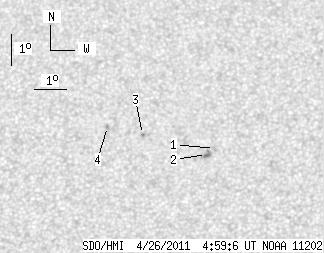

back to the solar disc SDO HMI 2011-04-26 04:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.03 | 15.19 | 179.19 | 2.17 | 353.87 | 0.3432 | -789.0 | -616.5 | |
| 0.00 | 5.07 | 0.00 | 2.67 | 14.99 | 178.94 | 1.91 | 354.52 | 0.3396 | -1046.0 | -853.9 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 15.63 | 176.94 | -0.08 | 0.23 | 0.3486 | 1139.0 | 977.9 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 15.89 | 175.84 | -1.18 | 3.23 | 0.3534 | 944.0 | 792.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
