SDO HMI 2011-04-26 07:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.29 | 0.00 | 8.60 | 15.36 | 178.06 | 2.68 | 352.50 | 0.3477 | 233.3 | -258.8 | |
|
previous
or next observation for the same group /

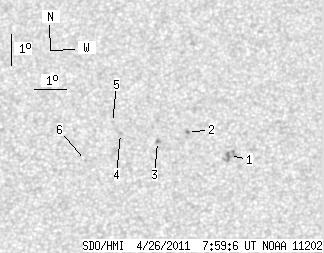

back to the solar disc SDO HMI 2011-04-26 07:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.17 | 0.00 | 4.84 | 15.12 | 179.30 | 3.92 | 348.96 | 0.3460 | -899.0 | -730.4 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 15.85 | 177.99 | 2.61 | 352.86 | 0.3545 | -828.0 | -772.3 | |
| 0.00 | 2.14 | 0.00 | 1.13 | 15.56 | 177.05 | 1.67 | 355.36 | 0.3482 | 1073.0 | 802.0 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 15.81 | 175.89 | 0.51 | 358.60 | 0.3514 | 793.0 | 613.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.17 | 175.64 | 0.26 | 359.30 | 0.3571 | 529.0 | 428.0 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.95 | 174.80 | -0.58 | 1.68 | 0.3371 | 732.0 | 499.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
