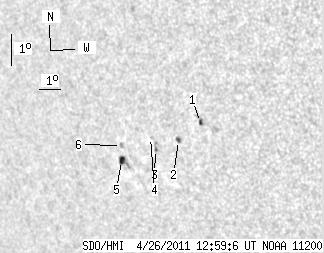

SDO HMI 2011-04-26 12:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.39 | 18.59 | 5.79 | 14.52 | -17.31 | 122.48 | -50.16 | 108.63 | 0.7755 | 11.7 | 5.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-26 12:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.07 | 3.65 | 0.79 | 2.70 | -16.72 | 125.20 | -47.44 | 108.37 | 0.7457 | 675.3 | 611.7 | |
| 1.96 | 2.13 | 1.49 | 1.62 | -17.21 | 123.99 | -48.65 | 108.78 | 0.7597 | 564.4 | 631.5 | |
| 0.36 | 2.76 | 0.28 | 2.14 | -17.41 | 122.79 | -49.85 | 108.82 | 0.7728 | 387.2 | 397.5 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -17.03 | 122.69 | -49.95 | 108.31 | 0.7733 | 438.0 | 326.5 | |
| 4.00 | 6.94 | 3.23 | 5.59 | -17.65 | 120.99 | -51.65 | 108.80 | 0.7917 | -497.2 | -589.8 | |
| 0.00 | 2.13 | 0.00 | 1.71 | -17.19 | 121.17 | -51.47 | 108.25 | 0.7892 | -599.0 | -469.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
