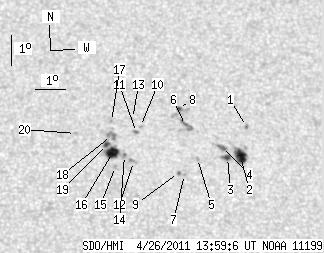

SDO HMI 2011-04-26 13:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.60 | 86.54 | 19.71 | 49.31 | 20.74 | 187.63 | 15.54 | 329.60 | 0.4965 | 58.2 | 38.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-26 13:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.72 | 21.36 | 190.28 | 18.19 | 326.21 | 0.5249 | -880.0 | -688.1 | |
| 11.56 | 16.45 | 6.65 | 9.47 | 20.35 | 189.95 | 17.86 | 325.51 | 0.5100 | -1002.7 | -575.2 | |
| 2.93 | 4.36 | 1.68 | 2.50 | 20.30 | 189.51 | 17.42 | 326.12 | 0.5057 | -1009.4 | -860.9 | |
| 3.74 | 4.36 | 2.15 | 2.50 | 20.63 | 189.34 | 17.25 | 326.75 | 0.5083 | -749.4 | -654.4 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 20.24 | 188.49 | 16.40 | 327.61 | 0.4966 | -858.0 | -723.1 | |
| 0.00 | 9.34 | 0.00 | 5.36 | 21.34 | 188.21 | 16.12 | 329.26 | 0.5081 | -338.0 | -651.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 19.70 | 188.00 | 15.91 | 327.76 | 0.4857 | -938.0 | -755.4 | |
| 1.69 | 9.16 | 0.97 | 5.28 | 21.91 | 188.04 | 15.95 | 330.13 | 0.5140 | 586.3 | -29.7 | |
| 1.25 | 1.25 | 0.70 | 0.70 | 19.76 | 187.81 | 15.72 | 328.14 | 0.4849 | -846.0 | 0.0 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 21.27 | 186.69 | 14.60 | 331.60 | 0.4959 | 587.0 | 371.9 | |
| 0.44 | 1.42 | 0.25 | 0.81 | 21.07 | 186.54 | 14.45 | 331.64 | 0.4921 | 859.2 | 697.3 | |
| 0.00 | 3.56 | 0.00 | 2.00 | 20.09 | 186.34 | 14.26 | 330.93 | 0.4779 | 840.0 | 690.3 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 21.53 | 186.45 | 14.36 | 332.26 | 0.4976 | 556.0 | 397.3 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 20.29 | 186.06 | 13.97 | 331.61 | 0.4784 | 843.0 | 623.3 | |
| 0.00 | 1.69 | 0.00 | 0.95 | 19.92 | 185.73 | 13.64 | 331.79 | 0.4710 | 838.0 | 608.4 | |
| 10.41 | 18.05 | 5.86 | 10.16 | 20.38 | 185.68 | 13.59 | 332.37 | 0.4768 | 1157.2 | 660.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 21.42 | 185.74 | 13.65 | 333.32 | 0.4911 | 682.0 | 567.7 | |
| 0.00 | 5.78 | 0.00 | 3.27 | 20.95 | 185.69 | 13.60 | 332.92 | 0.4845 | 791.0 | 730.4 | |
| 2.58 | -16.00 | 1.45 | -16.00 | 20.64 | 185.50 | 13.41 | 332.94 | 0.4791 | 828.9 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 20.99 | 184.50 | 12.41 | 335.02 | 0.4771 | 722.0 | 534.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
