SDO HMI 2011-04-26 15:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.25 | 26.23 | 3.99 | 19.81 | -17.41 | 122.61 | -48.38 | 109.11 | 0.7568 | -90.0 | 50.7 | |
|
previous
or next observation for the same group /

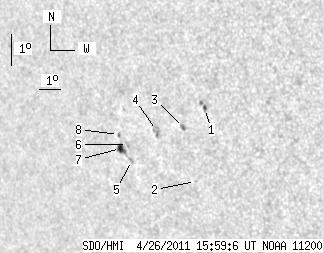

back to the solar disc SDO HMI 2011-04-26 15:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.60 | 4.09 | 1.15 | 2.93 | -16.66 | 125.36 | -45.62 | 108.69 | 0.7252 | 735.9 | 567.8 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -18.88 | 124.21 | -46.78 | 111.39 | 0.7429 | 536.0 | 463.2 | |
| 0.00 | 2.85 | 0.00 | 2.08 | -17.19 | 124.24 | -46.75 | 109.15 | 0.7389 | 782.0 | 565.2 | |
| 0.00 | 5.69 | 0.00 | 4.27 | -17.21 | 122.96 | -48.02 | 108.91 | 0.7529 | 633.0 | 487.3 | |
| 0.00 | 2.31 | 0.00 | 1.79 | -18.06 | 121.45 | -49.54 | 109.71 | 0.7707 | -706.0 | -578.6 | |
| 0.00 | 1.78 | 0.00 | 1.37 | -17.56 | 121.44 | -49.55 | 109.06 | 0.7698 | -747.0 | -604.7 | |
| 3.65 | 7.02 | 2.84 | 5.47 | -17.66 | 121.06 | -49.93 | 109.12 | 0.7740 | -597.9 | -524.8 | |
| 0.00 | 1.60 | 0.00 | 1.24 | -17.22 | 121.12 | -49.86 | 108.58 | 0.7726 | -545.0 | -424.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
