SDO HMI 2011-04-27 03:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.89 | 202.33 | 46.94 | 121.92 | 20.80 | 188.37 | 24.01 | 318.10 | 0.5710 | -235.1 | -32.2 | |
|
previous
or next observation for the same group /

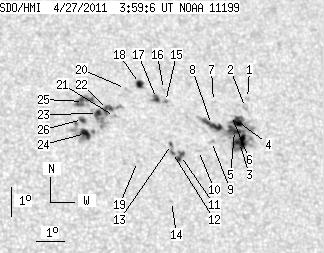

back to the solar disc SDO HMI 2011-04-27 03:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.40 | 0.00 | 1.50 | 21.74 | 191.29 | 26.93 | 315.99 | 0.6077 | -454.0 | -329.1 | |
| 0.00 | 3.29 | 0.00 | 2.04 | 21.43 | 191.15 | 26.79 | 315.75 | 0.6035 | -633.0 | -415.9 | |
| 11.31 | 86.52 | 6.91 | 52.99 | 20.25 | 190.71 | 26.35 | 314.71 | 0.5882 | -1047.1 | -457.7 | |
| 6.85 | -3.00 | 4.22 | -3.00 | 20.95 | 190.77 | 26.41 | 315.54 | 0.5953 | -823.9 | 999999 | |
| 8.01 | -3.00 | 4.91 | -3.00 | 20.64 | 190.60 | 26.24 | 315.33 | 0.5908 | -934.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 21.14 | 190.59 | 26.23 | 315.98 | 0.5953 | -417.0 | -344.2 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 21.59 | 190.02 | 25.66 | 317.13 | 0.5942 | -594.0 | -529.2 | |
| 9.17 | -3.00 | 5.59 | -3.00 | 20.81 | 189.81 | 25.45 | 316.40 | 0.5846 | -877.0 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.29 | 20.24 | 189.71 | 25.35 | 315.78 | 0.5781 | -628.0 | -483.4 | |
| 0.00 | 1.51 | 0.00 | 0.91 | 19.93 | 189.19 | 24.83 | 315.94 | 0.5699 | -612.0 | -327.5 | |
| 4.98 | 11.31 | 2.98 | 6.75 | 19.74 | 188.52 | 24.16 | 316.45 | 0.5614 | -876.6 | -469.6 | |
| 1.25 | -11.00 | 0.74 | -11.00 | 19.83 | 188.26 | 23.90 | 316.88 | 0.5597 | -781.8 | 999999 | |
| 0.89 | -11.00 | 0.53 | -11.00 | 20.09 | 188.26 | 23.90 | 317.21 | 0.5624 | 373.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 18.21 | 187.97 | 23.61 | 315.04 | 0.5407 | -646.0 | -508.6 | |
| 0.00 | 2.31 | 0.00 | 1.40 | 21.53 | 188.30 | 23.94 | 318.98 | 0.5772 | -838.0 | -670.7 | |
| 0.00 | 1.60 | 0.00 | 0.97 | 21.93 | 188.30 | 23.94 | 319.47 | 0.5813 | 563.0 | 404.6 | |
| 3.92 | 5.25 | 2.37 | 3.17 | 21.62 | 187.99 | 23.63 | 319.44 | 0.5753 | -812.2 | -696.2 | |
| 4.36 | 5.61 | 2.64 | 3.39 | 22.11 | 187.47 | 23.11 | 320.63 | 0.5756 | 666.9 | 398.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 19.49 | 186.98 | 22.62 | 317.96 | 0.5436 | 361.0 | 340.6 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 21.92 | 186.95 | 22.59 | 321.04 | 0.5689 | -638.0 | -551.5 | |
| 0.00 | 2.40 | 0.00 | 1.43 | 20.96 | 186.41 | 22.05 | 320.55 | 0.5537 | 591.0 | 349.1 | |
| 5.52 | 27.68 | 3.28 | 16.41 | 21.19 | 186.20 | 21.84 | 321.08 | 0.5542 | 770.8 | 671.2 | |
| 3.20 | -22.00 | 1.90 | -22.00 | 21.04 | 185.83 | 21.47 | 321.38 | 0.5493 | 1020.0 | 999999 | |
| 5.79 | 22.70 | 3.39 | 13.30 | 20.36 | 185.31 | 20.95 | 321.20 | 0.5371 | 1044.6 | 610.5 | |
| 9.79 | 18.34 | 5.80 | 10.86 | 21.43 | 185.40 | 21.04 | 322.39 | 0.5497 | 711.4 | 557.5 | |
| 2.85 | 3.92 | 1.68 | 2.30 | 20.83 | 185.27 | 20.91 | 321.82 | 0.5419 | 781.3 | 649.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
