SDO HMI 2011-04-27 08:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.12 | 31.14 | 3.89 | 17.03 | 15.57 | 176.65 | 15.03 | 323.82 | 0.4251 | 56.5 | -78.9 | |
|
previous
or next observation for the same group /

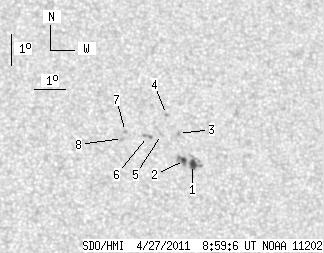

back to the solar disc SDO HMI 2011-04-27 08:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.63 | 11.57 | 2.53 | 6.33 | 15.17 | 177.20 | 15.58 | 322.24 | 0.4251 | -981.3 | -631.1 | |
| 2.49 | 8.01 | 1.36 | 4.38 | 15.29 | 176.95 | 15.33 | 322.87 | 0.4242 | -1033.0 | -780.3 | |
| 0.00 | 1.51 | 0.00 | 0.83 | 16.16 | 176.82 | 15.20 | 324.34 | 0.4339 | 799.0 | 655.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 16.76 | 176.48 | 14.86 | 325.78 | 0.4385 | 760.0 | 579.9 | |
| 0.00 | 1.87 | 0.00 | 1.02 | 16.11 | 176.27 | 14.65 | 325.27 | 0.4282 | 710.0 | 462.2 | |
| 0.00 | 3.56 | 0.00 | 1.95 | 16.04 | 175.81 | 14.19 | 326.02 | 0.4232 | 433.0 | 554.7 | |
| 0.00 | 1.60 | 0.00 | 0.87 | 16.19 | 175.11 | 13.49 | 327.54 | 0.4190 | 896.0 | 663.7 | |
| 0.00 | 1.60 | 0.00 | 0.87 | 15.96 | 174.99 | 13.37 | 327.45 | 0.4151 | 848.0 | 667.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
