SDO HMI 2011-04-27 10:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.98 | 26.79 | 2.74 | 14.73 | 15.40 | 176.66 | 16.14 | 321.63 | 0.4335 | 92.2 | -110.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-27 10:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

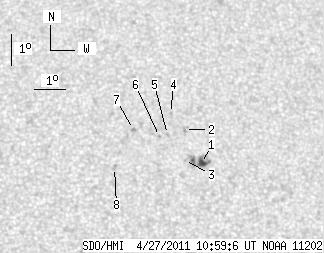

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.98 | 15.75 | 2.74 | 8.67 | 15.11 | 177.27 | 16.74 | 320.14 | 0.4358 | -954.0 | -735.7 | |
| 0.00 | 2.40 | 0.00 | 1.33 | 16.19 | 176.80 | 16.28 | 322.52 | 0.4442 | 535.0 | 486.9 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 15.19 | 176.72 | 16.20 | 321.19 | 0.4313 | -568.0 | -486.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 16.70 | 176.39 | 15.86 | 323.93 | 0.4465 | 694.0 | 650.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 16.01 | 176.23 | 15.71 | 323.24 | 0.4367 | 611.0 | 517.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 15.94 | 175.97 | 15.44 | 323.60 | 0.4333 | 605.0 | 567.0 | |
| 0.00 | 1.96 | 0.00 | 1.07 | 16.15 | 175.14 | 14.61 | 325.38 | 0.4283 | 867.0 | 710.3 | |
| 0.00 | 2.49 | 0.00 | 1.35 | 14.92 | 174.44 | 13.91 | 324.93 | 0.4061 | 768.0 | 608.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
