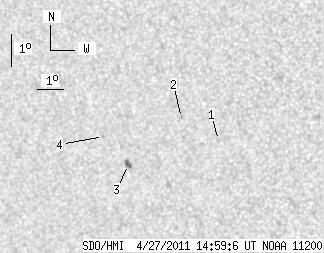

SDO HMI 2011-04-27 14:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.47 | 7.13 | 2.19 | 4.45 | -17.25 | 122.30 | -36.03 | 112.67 | 0.6108 | -234.9 | -4.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-27 14:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.65 | -17.10 | 125.09 | -33.24 | 113.70 | 0.5743 | 342.0 | 325.9 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -16.34 | 123.84 | -34.49 | 111.85 | 0.5876 | 620.0 | 358.3 | |
| 3.47 | 3.83 | 2.19 | 2.42 | -17.69 | 121.47 | -36.85 | 113.01 | 0.6230 | -711.9 | -770.8 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -16.79 | 120.70 | -37.63 | 111.30 | 0.6297 | -622.0 | -511.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
