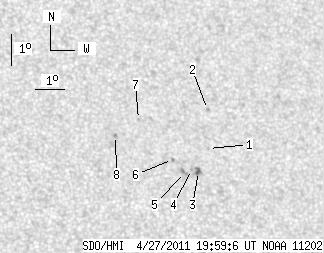

SDO HMI 2011-04-27 19:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 14.41 | 0.76 | 8.21 | 15.56 | 177.24 | 21.68 | 313.54 | 0.4930 | -380.8 | -443.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-27 19:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.82 | 15.82 | 178.14 | 22.58 | 312.79 | 0.5054 | -749.0 | -528.9 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 17.08 | 178.26 | 22.70 | 314.50 | 0.5192 | -684.0 | -569.2 | |
| 1.33 | 4.18 | 0.76 | 2.38 | 15.07 | 177.71 | 22.15 | 312.17 | 0.4933 | -817.5 | -700.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 15.12 | 177.48 | 21.92 | 312.55 | 0.4912 | -932.0 | -807.7 | |
| 0.00 | 2.94 | 0.00 | 1.66 | 15.02 | 177.24 | 21.67 | 312.71 | 0.4874 | -951.0 | -810.6 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 15.42 | 176.88 | 21.31 | 313.81 | 0.4875 | -678.0 | -605.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 16.68 | 175.87 | 20.31 | 317.05 | 0.4900 | 796.0 | 640.9 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 16.14 | 175.05 | 19.48 | 317.43 | 0.4755 | 864.0 | 753.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
