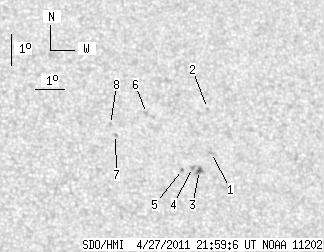

SDO HMI 2011-04-27 21:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 14.78 | 1.12 | 8.48 | 15.79 | 177.13 | 22.67 | 312.65 | 0.5064 | -210.9 | -217.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-27 21:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.18 | 15.67 | 178.24 | 23.79 | 311.11 | 0.5174 | -715.0 | -480.8 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 17.09 | 178.29 | 23.83 | 313.15 | 0.5315 | -623.0 | -439.3 | |
| 1.96 | 4.00 | 1.12 | 2.30 | 15.08 | 177.76 | 23.30 | 310.77 | 0.5064 | -802.0 | -719.5 | |
| 0.00 | 1.78 | 0.00 | 1.02 | 15.17 | 177.53 | 23.08 | 311.18 | 0.5046 | -738.0 | -675.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 15.09 | 177.18 | 22.73 | 311.49 | 0.5000 | -804.0 | -736.9 | |
| 0.00 | 2.05 | 0.00 | 1.17 | 16.86 | 176.17 | 21.71 | 315.42 | 0.5065 | 657.0 | 514.7 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 16.15 | 175.04 | 20.59 | 315.88 | 0.4871 | 776.0 | 590.5 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 16.47 | 174.91 | 20.45 | 316.54 | 0.4891 | 633.0 | 494.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
