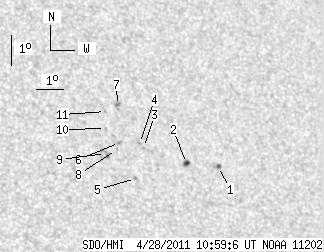

SDO HMI 2011-04-28 10:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.19 | 22.89 | 2.58 | 13.86 | 15.52 | 176.41 | 29.10 | 305.36 | 0.5767 | 203.6 | 304.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-28 10:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.87 | 3.56 | 1.16 | 2.21 | 15.03 | 179.05 | 31.74 | 302.38 | 0.6039 | -817.6 | -672.7 | |
| 2.32 | 3.21 | 1.42 | 1.96 | 15.08 | 177.89 | 30.58 | 303.39 | 0.5906 | -812.4 | -747.3 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 15.53 | 176.41 | 29.10 | 305.34 | 0.5766 | 681.0 | 447.4 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 15.65 | 176.28 | 28.97 | 305.63 | 0.5761 | 669.0 | 509.0 | |
| 0.00 | 1.78 | 0.00 | 1.07 | 14.52 | 175.97 | 28.66 | 304.23 | 0.5637 | -803.0 | -594.1 | |
| 0.00 | 1.60 | 0.00 | 0.96 | 15.66 | 175.57 | 28.26 | 306.30 | 0.5678 | 704.0 | 557.3 | |
| 0.00 | 3.30 | 0.00 | 2.00 | 16.85 | 175.69 | 28.38 | 307.92 | 0.5788 | 851.0 | 680.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 15.43 | 175.43 | 28.12 | 306.09 | 0.5644 | 403.0 | 431.4 | |
| 0.00 | 4.81 | 0.00 | 2.87 | 15.28 | 175.02 | 27.71 | 306.27 | 0.5584 | 557.0 | 665.7 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 16.09 | 175.14 | 27.83 | 307.35 | 0.5663 | 588.0 | 501.5 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 16.64 | 175.22 | 27.91 | 308.06 | 0.5718 | 810.0 | 612.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
