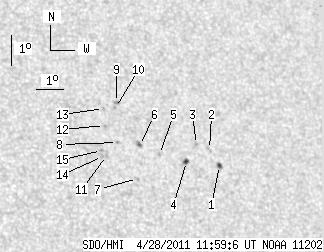

SDO HMI 2011-04-28 11:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.63 | 25.44 | 2.86 | 15.56 | 15.54 | 176.69 | 29.93 | 304.67 | 0.5865 | 116.6 | 148.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-28 11:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 2.76 | 1.33 | 1.72 | 15.03 | 179.13 | 32.37 | 301.89 | 0.6112 | -731.1 | -568.0 | |
| 0.00 | 1.87 | 0.00 | 1.17 | 15.52 | 178.85 | 32.09 | 302.82 | 0.6113 | -650.0 | -527.2 | |
| 0.00 | 1.42 | 0.00 | 0.89 | 15.67 | 178.39 | 31.63 | 303.39 | 0.6070 | -719.0 | -480.4 | |
| 1.69 | 2.67 | 1.04 | 1.65 | 15.10 | 177.93 | 31.17 | 302.95 | 0.5976 | -814.5 | -719.3 | |
| 0.00 | 1.51 | 0.00 | 0.93 | 15.29 | 176.98 | 30.21 | 304.01 | 0.5878 | -827.0 | -606.9 | |
| 0.80 | 2.58 | 0.49 | 1.57 | 15.55 | 176.30 | 29.53 | 304.98 | 0.5817 | 489.9 | 569.5 | |
| 0.00 | 1.69 | 0.00 | 1.02 | 14.48 | 176.06 | 29.30 | 303.60 | 0.5710 | -871.0 | -654.8 | |
| 0.00 | 1.51 | 0.00 | 0.91 | 15.61 | 175.51 | 28.75 | 305.77 | 0.5732 | 675.0 | 565.2 | |
| 0.00 | 2.49 | 0.00 | 1.52 | 16.91 | 175.69 | 28.93 | 307.48 | 0.5854 | 883.0 | 647.2 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 16.74 | 175.62 | 28.86 | 307.31 | 0.5833 | 775.0 | 541.1 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 15.18 | 175.06 | 28.29 | 305.55 | 0.5644 | 691.0 | 650.9 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 16.14 | 175.13 | 28.37 | 306.91 | 0.5730 | 505.0 | 446.4 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 16.69 | 175.18 | 28.42 | 307.65 | 0.5780 | 775.0 | 739.1 | |
| 0.00 | 1.42 | 0.00 | 0.85 | 15.14 | 174.91 | 28.15 | 305.63 | 0.5624 | 863.0 | 697.0 | |
| 0.00 | 1.60 | 0.00 | 0.96 | 15.33 | 174.90 | 28.14 | 305.93 | 0.5638 | 839.0 | 717.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
