SDO HMI 2011-04-28 13:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.40 | 0.00 | 3.97 | 13.75 | 113.30 | -32.37 | 59.85 | 0.6031 | -644.0 | -583.6 | |
|
previous
or next observation for the same group /

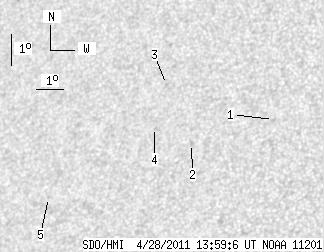

back to the solar disc SDO HMI 2011-04-28 13:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.91 | 14.15 | 116.72 | -28.95 | 56.60 | 0.5643 | -707.0 | -608.4 | |
| 0.00 | 2.31 | 0.00 | 1.42 | 13.51 | 113.85 | -31.81 | 59.92 | 0.5946 | -754.0 | -644.3 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 15.44 | 112.61 | -33.06 | 58.04 | 0.6220 | -651.0 | -490.7 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 14.08 | 112.39 | -33.27 | 60.15 | 0.6157 | -537.0 | -611.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 12.04 | 108.70 | -36.96 | 65.46 | 0.6487 | -571.0 | -496.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
