SDO HMI 2011-04-28 15:59:51 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 17.73 | 1.59 | 11.12 | 15.71 | 176.97 | 32.41 | 302.89 | 0.6166 | 154.3 | 116.8 | |
|
previous
or next observation for the same group /

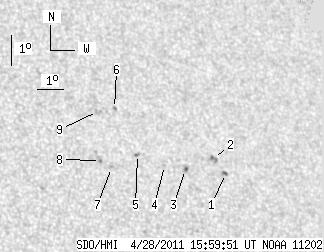

back to the solar disc SDO HMI 2011-04-28 15:59:51 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 2.05 | 0.86 | 1.32 | 15.04 | 179.41 | 34.85 | 300.11 | 0.6403 | -662.4 | -647.6 | |
| 0.00 | 3.56 | 0.00 | 2.29 | 15.50 | 179.04 | 34.48 | 301.02 | 0.6389 | -764.0 | -632.5 | |
| 1.16 | 1.87 | 0.73 | 1.18 | 15.10 | 177.91 | 33.35 | 301.26 | 0.6232 | -788.1 | -725.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 15.20 | 177.14 | 32.58 | 301.96 | 0.6148 | -808.0 | -664.5 | |
| 0.00 | 2.05 | 0.00 | 1.27 | 15.51 | 176.19 | 31.64 | 303.15 | 0.6059 | 851.0 | 611.7 | |
| 0.00 | 1.78 | 0.00 | 1.11 | 16.96 | 175.61 | 31.05 | 305.69 | 0.6097 | 756.0 | 641.9 | |
| 0.00 | 1.34 | 0.00 | 0.82 | 15.05 | 175.17 | 30.61 | 303.32 | 0.5907 | 758.0 | 627.1 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 15.26 | 174.80 | 30.25 | 303.93 | 0.5879 | 969.0 | 828.0 | |
| 0.00 | 3.03 | 0.00 | 1.87 | 16.84 | 174.96 | 30.40 | 306.06 | 0.6014 | 708.0 | 558.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
