groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11199 68.99 324.55 54.12 256.40 20.47 188.93 45.48 301.00 0.7800 -46.1 0.4


previous   or   next   observation for the same group / back to the solar disc

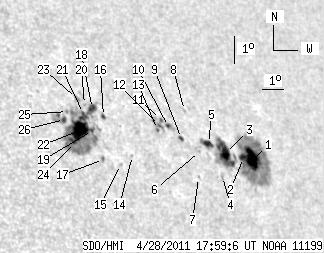

SDO HMI 2011-04-28 17:59:06 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 15.22 117.41 12.80 98.84 20.14 192.34 48.89 298.93 0.8104 -847.9 -167.5
2 3.65 -1.00 3.04 -1.00 20.18 191.92 48.46 299.16 0.8068 -823.2 999999
3 8.90 40.68 7.31 33.32 20.26 191.08 47.63 299.63 0.7995 -819.7 -564.5
4 0.00 2.14 0.00 1.73 19.48 190.63 47.17 298.92 0.7922 -602.0 -429.2
5 4.63 9.17 3.76 7.43 20.55 190.39 46.93 300.28 0.7944 -651.5 -470.2
6 0.00 0.89 0.00 0.71 20.25 189.85 46.39 300.19 0.7882 -636.0 -573.1
7 0.00 0.71 0.00 0.56 19.37 189.47 46.01 299.34 0.7809 -560.0 -501.6
8 0.00 1.34 0.00 1.08 21.60 189.69 46.23 301.83 0.7925 -424.0 -337.1
9 1.87 2.40 1.48 1.91 20.64 189.16 45.70 300.97 0.7835 350.3 153.7
10 1.34 4.54 1.05 3.59 21.01 188.70 45.25 301.63 0.7809 -410.2 -323.5
11 0.36 10.59 0.28 8.30 21.23 188.42 44.96 302.03 0.7792 -536.2 -553.1
12 0.80 -11.00 0.63 -11.00 21.02 188.29 44.84 301.85 0.7771 -705.4 999999
13 0.36 -11.00 0.28 -11.00 20.88 188.15 44.69 301.76 0.7751 -679.2 999999
14 0.00 0.80 0.00 0.60 19.94 186.69 43.23 301.40 0.7566 484.0 410.0
15 0.00 1.42 0.00 1.06 19.61 186.05 42.59 301.34 0.7487 505.0 417.3
16 1.60 2.49 1.20 1.87 21.18 185.84 42.39 303.34 0.7547 262.4 189.0
17 0.00 2.14 0.00 1.57 19.73 185.35 41.89 301.88 0.7425 654.0 589.6
18 4.98 111.98 3.73 82.23 21.43 185.45 41.99 303.86 0.7522 421.1 479.7
19 0.98 -18.00 0.73 -18.00 20.68 185.19 41.73 303.11 0.7458 534.6 999999
20 0.00 1.07 0.00 0.80 21.54 185.14 41.68 304.17 0.7499 376.0 286.8
21 0.98 -18.00 0.73 -18.00 21.24 184.99 41.53 303.89 0.7468 478.5 999999
22 19.41 -18.00 14.24 -18.00 20.65 184.62 41.16 303.40 0.7401 1010.0 999999
23 0.00 2.58 0.00 1.92 21.73 184.86 41.40 304.55 0.7482 593.0 441.4
24 1.60 -18.00 1.17 -18.00 20.24 184.27 40.81 303.10 0.7344 1041.0 999999
25 0.00 1.34 0.00 0.98 21.27 184.31 40.85 304.32 0.7404 587.0 524.7
26 2.31 10.86 1.69 7.90 20.99 184.08 40.63 304.12 0.7367 864.7 638.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
