SDO HMI 2011-04-28 18:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.17 | 320.01 | 58.60 | 254.79 | 20.51 | 188.69 | 45.79 | 300.89 | 0.7831 | -136.3 | 44.8 | |
|
previous
or next observation for the same group /

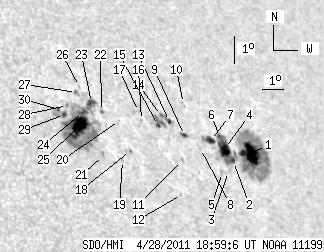

back to the solar disc SDO HMI 2011-04-28 18:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.54 | 146.43 | 18.32 | 123.98 | 20.17 | 192.30 | 49.40 | 298.75 | 0.8151 | -773.3 | -230.3 | |
| 1.34 | -1.00 | 1.11 | -1.00 | 19.85 | 191.33 | 48.43 | 298.80 | 0.8052 | -769.4 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.44 | 19.49 | 190.95 | 48.04 | 298.56 | 0.8003 | -447.0 | -422.7 | |
| 13.17 | -1.00 | 10.93 | -1.00 | 20.26 | 191.06 | 48.16 | 299.39 | 0.8044 | -751.8 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.24 | 19.44 | 190.64 | 47.73 | 298.63 | 0.7973 | -553.0 | -435.0 | |
| 0.53 | -1.00 | 0.44 | -1.00 | 20.65 | 190.98 | 48.08 | 299.87 | 0.8052 | -435.3 | 999999 | |
| 4.90 | 8.10 | 4.02 | 6.65 | 20.49 | 190.48 | 47.58 | 299.91 | 0.8000 | -682.5 | -542.1 | |
| 0.00 | 0.89 | 0.00 | 0.72 | 20.19 | 189.88 | 46.98 | 299.84 | 0.7933 | -695.0 | -556.6 | |
| 1.42 | 2.67 | 1.14 | 2.15 | 20.58 | 189.29 | 46.38 | 300.58 | 0.7895 | 445.2 | 316.9 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 21.67 | 189.68 | 46.78 | 301.64 | 0.7978 | -363.0 | -369.0 | |
| 0.00 | 1.51 | 0.00 | 1.20 | 19.73 | 188.87 | 45.96 | 299.78 | 0.7819 | -318.0 | -354.5 | |
| 0.00 | 0.89 | 0.00 | 0.69 | 18.59 | 188.41 | 45.51 | 298.64 | 0.7727 | -519.0 | -483.3 | |
| 0.80 | 17.89 | 0.64 | 14.18 | 21.01 | 188.76 | 45.85 | 301.33 | 0.7865 | -297.8 | -452.5 | |
| 0.71 | -13.00 | 0.57 | -13.00 | 21.19 | 188.46 | 45.55 | 301.69 | 0.7845 | -421.6 | 999999 | |
| 1.60 | -13.00 | 1.26 | -13.00 | 20.85 | 188.18 | 45.28 | 301.42 | 0.7804 | -694.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.90 | 20.97 | 187.45 | 44.55 | 301.94 | 0.7742 | -663.0 | -548.8 | |
| 0.00 | 0.89 | 0.00 | 0.70 | 21.27 | 187.43 | 44.52 | 302.30 | 0.7753 | -287.0 | -284.1 | |
| 0.00 | 1.34 | 0.00 | 1.02 | 19.93 | 186.58 | 43.67 | 301.16 | 0.7609 | 530.0 | 415.1 | |
| 0.00 | 1.34 | 0.00 | 1.00 | 19.57 | 186.10 | 43.20 | 300.98 | 0.7545 | 464.0 | 380.1 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 20.91 | 186.44 | 43.53 | 302.40 | 0.7643 | 422.0 | 352.6 | |
| 0.00 | 2.14 | 0.00 | 1.59 | 19.69 | 185.31 | 42.40 | 301.55 | 0.7473 | 658.0 | 538.3 | |
| 0.00 | 1.69 | 0.00 | 1.28 | 21.17 | 185.73 | 42.83 | 303.09 | 0.7589 | 450.0 | 309.7 | |
| 4.54 | 116.35 | 3.43 | 86.14 | 21.45 | 185.39 | 42.49 | 303.61 | 0.7571 | 421.5 | 490.8 | |
| 1.96 | -23.00 | 1.46 | -23.00 | 21.13 | 184.92 | 42.02 | 303.48 | 0.7509 | 643.4 | 999999 | |
| 17.63 | -23.00 | 13.05 | -23.00 | 20.65 | 184.58 | 41.68 | 303.10 | 0.7451 | 992.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 21.97 | 185.05 | 42.14 | 304.41 | 0.7565 | 255.0 | 189.2 | |
| 0.00 | 2.67 | 0.00 | 2.00 | 21.76 | 184.84 | 41.94 | 304.28 | 0.7534 | 557.0 | 454.2 | |
| 0.00 | 0.89 | 0.00 | 0.66 | 21.29 | 184.28 | 41.38 | 304.05 | 0.7456 | 479.0 | 385.3 | |
| 2.05 | 8.90 | 1.51 | 6.53 | 20.98 | 184.05 | 41.14 | 303.81 | 0.7417 | 819.8 | 569.0 | |
| 0.98 | -29.00 | 0.72 | -29.00 | 21.14 | 183.84 | 40.94 | 304.12 | 0.7405 | 784.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
