SDO HMI 2011-04-28 21:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.31 | 0.00 | 9.82 | 12.04 | 111.06 | -30.18 | 61.06 | 0.5676 | -493.3 | -438.7 | |
|
previous
or next observation for the same group /

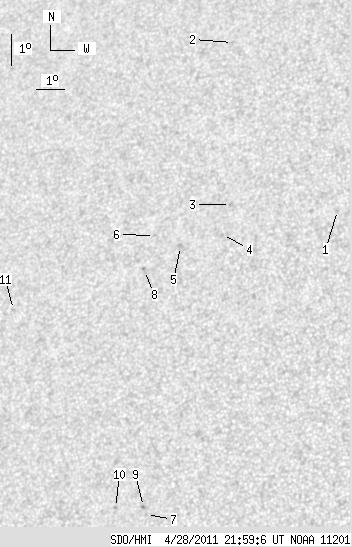

back to the solar disc SDO HMI 2011-04-28 21:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.62 | 14.32 | 116.54 | -24.70 | 52.15 | 0.5149 | -549.0 | -422.9 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 19.94 | 111.92 | -29.32 | 48.78 | 0.6143 | 591.0 | 457.5 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 14.65 | 112.76 | -28.48 | 55.43 | 0.5624 | -688.0 | -556.6 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 13.70 | 112.61 | -28.63 | 57.02 | 0.5571 | -511.0 | -382.0 | |
| 0.00 | 3.03 | 0.00 | 1.83 | 13.38 | 111.15 | -30.09 | 58.76 | 0.5726 | -232.0 | -412.8 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 13.77 | 110.16 | -31.08 | 58.97 | 0.5873 | -539.0 | -480.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 5.08 | 110.74 | -30.50 | 73.00 | 0.5307 | -517.0 | -486.2 | |
| 0.00 | 2.14 | 0.00 | 1.30 | 12.67 | 109.95 | -31.29 | 60.80 | 0.5826 | -688.0 | -491.5 | |
| 0.00 | 1.69 | 0.00 | 0.99 | 5.33 | 110.62 | -30.62 | 72.62 | 0.5335 | -798.0 | -656.9 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 5.34 | 109.63 | -31.61 | 73.13 | 0.5475 | -738.0 | -563.2 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 11.66 | 105.23 | -36.01 | 65.48 | 0.6352 | -757.0 | -624.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
