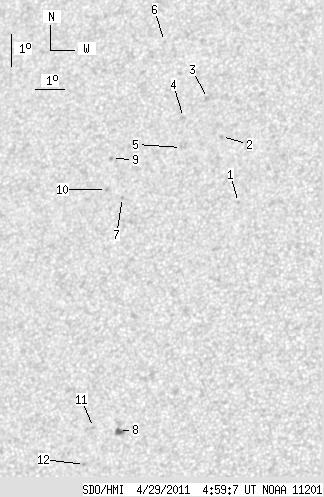

SDO HMI 2011-04-29 04:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.56 | 20.77 | 2.00 | 11.96 | 11.28 | 111.54 | -25.85 | 58.82 | 0.5081 | -624.2 | -498.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-29 04:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.45 | 12.17 | 114.45 | -22.93 | 53.77 | 0.4741 | -607.0 | -538.6 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 14.28 | 113.66 | -23.72 | 51.16 | 0.5025 | -881.0 | -714.9 | |
| 0.00 | 3.03 | 0.00 | 1.76 | 15.52 | 113.04 | -24.35 | 49.95 | 0.5210 | -653.0 | -530.7 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 14.93 | 112.28 | -25.10 | 51.68 | 0.5245 | -624.0 | -504.9 | |
| 0.00 | 1.60 | 0.00 | 0.93 | 13.98 | 112.33 | -25.06 | 53.14 | 0.5157 | -700.0 | -598.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 17.42 | 111.27 | -26.11 | 49.08 | 0.5579 | -784.0 | -531.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 12.46 | 110.47 | -26.92 | 57.49 | 0.5263 | -745.0 | -612.7 | |
| 3.56 | 4.72 | 2.00 | 2.65 | 5.19 | 110.90 | -26.48 | 70.37 | 0.4735 | -860.8 | -852.9 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 13.71 | 109.93 | -27.45 | 55.98 | 0.5425 | -641.0 | -490.3 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 12.73 | 109.88 | -27.51 | 57.59 | 0.5357 | -817.0 | -623.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 5.34 | 110.04 | -27.34 | 70.66 | 0.4866 | -631.0 | -502.2 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 4.22 | 109.78 | -27.60 | 73.03 | 0.4851 | 690.0 | 614.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
