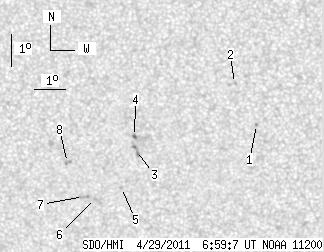

SDO HMI 2011-04-29 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 16.05 | 0.61 | 8.47 | -18.32 | 121.45 | -14.84 | 135.19 | 0.3456 | 141.7 | -22.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-29 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.51 | -17.26 | 125.87 | -10.42 | 142.38 | 0.2842 | 955.0 | 843.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -15.98 | 125.24 | -11.05 | 137.70 | 0.2750 | 781.0 | 646.1 | |
| 0.00 | 4.28 | 0.00 | 2.25 | -18.00 | 121.92 | -14.36 | 135.23 | 0.3365 | 748.0 | 642.2 | |
| 1.16 | 1.87 | 0.61 | 0.98 | -17.56 | 121.89 | -14.39 | 134.20 | 0.3320 | 734.5 | 442.6 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -19.14 | 121.33 | -14.96 | 136.54 | 0.3561 | 520.0 | 335.7 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -19.47 | 120.44 | -15.85 | 135.61 | 0.3698 | -677.0 | -606.7 | |
| 0.00 | 3.03 | 0.00 | 1.62 | -19.40 | 120.04 | -16.25 | 134.80 | 0.3735 | -891.0 | -787.7 | |
| 0.00 | 2.50 | 0.00 | 1.33 | -18.33 | 119.62 | -16.67 | 131.88 | 0.3673 | -806.0 | -759.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
