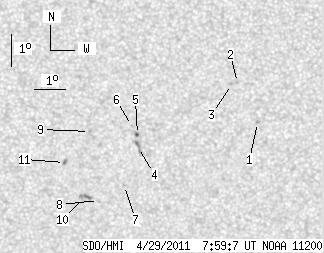

SDO HMI 2011-04-29 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 21.03 | 0.70 | 11.06 | -18.18 | 121.71 | -14.03 | 136.50 | 0.3347 | 147.4 | 11.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-29 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.69 | -17.23 | 125.90 | -9.84 | 143.87 | 0.2781 | 1011.0 | 811.7 | |
| 0.00 | 1.34 | 0.00 | 0.69 | -15.98 | 125.33 | -10.41 | 139.37 | 0.2680 | 814.0 | 612.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -16.04 | 125.13 | -10.61 | 139.01 | 0.2709 | 755.0 | 683.4 | |
| 0.00 | 4.90 | 0.00 | 2.57 | -17.94 | 122.00 | -13.74 | 136.35 | 0.3287 | 788.0 | 677.4 | |
| 0.98 | 1.34 | 0.51 | 0.70 | -17.54 | 122.00 | -13.74 | 135.44 | 0.3241 | 755.1 | 533.2 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -17.26 | 121.83 | -13.91 | 134.44 | 0.3230 | 594.0 | 432.8 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -19.12 | 121.45 | -14.29 | 137.75 | 0.3485 | 646.0 | 465.1 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -19.57 | 120.54 | -15.20 | 136.98 | 0.3636 | -413.0 | -361.9 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -17.42 | 120.44 | -15.30 | 132.21 | 0.3414 | -741.0 | -501.1 | |
| 0.00 | 5.70 | 0.00 | 3.04 | -19.47 | 120.09 | -15.65 | 135.97 | 0.3676 | -1018.0 | -826.4 | |
| 0.36 | 1.87 | 0.19 | 0.99 | -18.36 | 119.53 | -16.21 | 132.73 | 0.3622 | -1045.5 | -847.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
