SDO HMI 2011-04-29 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 25.50 | 0.69 | 14.19 | 10.93 | 112.88 | -22.31 | 55.42 | 0.4590 | -583.2 | -516.8 | |
|
previous
or next observation for the same group /

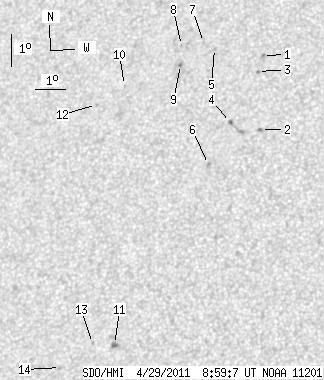

back to the solar disc SDO HMI 2011-04-29 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.84 | 14.16 | 115.24 | -19.95 | 46.56 | 0.4575 | -755.0 | -559.3 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 11.82 | 115.37 | -19.82 | 50.42 | 0.4324 | -907.0 | -743.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 13.66 | 115.12 | -20.07 | 47.56 | 0.4537 | 669.0 | 433.4 | |
| 1.25 | 5.79 | 0.69 | 3.20 | 12.07 | 114.37 | -20.83 | 51.35 | 0.4470 | -701.0 | -598.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 14.43 | 113.62 | -21.58 | 48.33 | 0.4787 | -825.0 | -712.1 | |
| 0.00 | 2.41 | 0.00 | 1.33 | 10.77 | 113.74 | -21.45 | 54.54 | 0.4429 | -882.0 | -627.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 14.63 | 113.23 | -21.97 | 48.50 | 0.4852 | -718.0 | -557.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 14.56 | 112.49 | -22.70 | 49.54 | 0.4929 | -681.0 | -554.2 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 13.96 | 112.52 | -22.67 | 50.48 | 0.4869 | -916.0 | -783.1 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 13.35 | 110.69 | -24.51 | 53.60 | 0.5034 | -664.0 | -522.9 | |
| 0.00 | 3.39 | 0.00 | 1.87 | 5.29 | 110.95 | -24.24 | 68.50 | 0.4412 | -903.0 | -800.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 12.78 | 109.79 | -25.40 | 55.50 | 0.5097 | -837.0 | -595.0 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 5.35 | 110.22 | -24.98 | 68.98 | 0.4522 | -647.0 | -493.5 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 4.65 | 109.17 | -26.02 | 71.19 | 0.4638 | 566.0 | 469.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
