SDO HMI 2011-04-29 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.85 | 30.22 | 1.50 | 15.76 | -17.92 | 121.08 | -12.47 | 139.13 | 0.3147 | 215.5 | -119.9 | |
|
previous
or next observation for the same group /

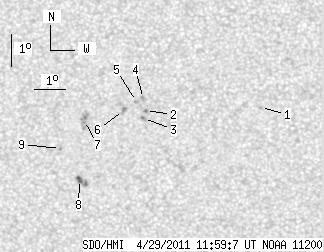

back to the solar disc SDO HMI 2011-04-29 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.64 | -17.29 | 125.98 | -7.57 | 150.75 | 0.2586 | 800.0 | 577.9 | |
| 0.00 | 1.43 | 0.00 | 0.74 | -17.34 | 122.29 | -11.26 | 140.51 | 0.2944 | 928.0 | 795.1 | |
| 0.00 | 2.41 | 0.00 | 1.25 | -17.59 | 122.21 | -11.34 | 140.87 | 0.2983 | 999.0 | 748.3 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -16.97 | 122.25 | -11.30 | 139.55 | 0.2902 | 815.0 | 588.6 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -17.06 | 122.02 | -11.53 | 139.20 | 0.2938 | 621.0 | 452.8 | |
| 0.00 | 3.30 | 0.00 | 1.71 | -17.33 | 121.58 | -11.97 | 138.81 | 0.3019 | 857.0 | 680.3 | |
| 0.00 | 9.36 | 0.00 | 4.89 | -17.62 | 120.29 | -13.26 | 136.65 | 0.3197 | -648.0 | -775.0 | |
| 2.85 | 6.86 | 1.50 | 3.62 | -19.45 | 119.98 | -13.57 | 139.89 | 0.3448 | -917.3 | -851.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -18.48 | 119.44 | -14.11 | 136.81 | 0.3392 | -949.0 | -761.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
