SDO HMI 2011-04-29 16:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.29 | 44.19 | 6.35 | 22.86 | -17.89 | 120.97 | -9.83 | 145.47 | 0.2874 | -309.5 | -103.7 | |
|
previous
or next observation for the same group /

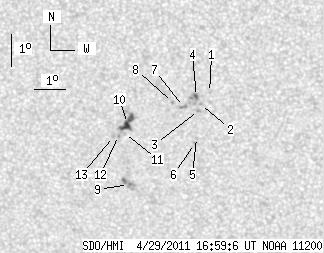

back to the solar disc SDO HMI 2011-04-29 16:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.36 | -16.76 | 122.87 | -7.93 | 148.53 | 0.2540 | -713.0 | -567.6 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -17.13 | 122.57 | -8.23 | 148.36 | 0.2619 | 924.0 | 718.6 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -17.31 | 122.49 | -8.30 | 148.53 | 0.2652 | 1023.0 | 722.6 | |
| 1.60 | 6.50 | 0.82 | 3.34 | -16.88 | 122.45 | -8.34 | 147.48 | 0.2595 | 1055.4 | 850.3 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.15 | 122.39 | -8.40 | 149.88 | 0.2780 | 490.0 | 474.1 | |
| 0.00 | 1.34 | 0.00 | 0.69 | -18.33 | 122.32 | -8.48 | 150.02 | 0.2813 | 950.0 | 658.2 | |
| 0.00 | 3.30 | 0.00 | 1.69 | -17.18 | 122.02 | -8.77 | 146.84 | 0.2676 | 806.0 | 695.2 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -17.06 | 121.68 | -9.12 | 145.56 | 0.2691 | -901.0 | -625.2 | |
| 0.00 | 8.19 | 0.00 | 4.28 | -19.59 | 120.11 | -10.69 | 146.52 | 0.3181 | -1025.0 | -866.8 | |
| 10.69 | 14.70 | 5.53 | 7.61 | -17.69 | 120.20 | -10.60 | 142.94 | 0.2921 | -1065.1 | -687.2 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -18.00 | 120.08 | -10.71 | 143.31 | 0.2972 | -68.0 | -64.3 | |
| 0.00 | 1.96 | 0.00 | 1.02 | -18.06 | 119.88 | -10.91 | 142.95 | 0.3000 | -935.0 | -699.3 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -18.09 | 119.72 | -11.07 | 142.61 | 0.3020 | -896.0 | -649.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
