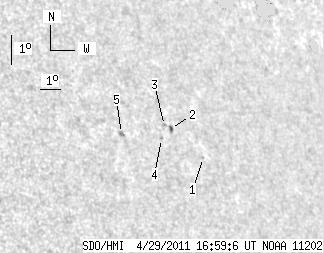

SDO HMI 2011-04-29 16:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.43 | 9.36 | 1.15 | 7.40 | 15.40 | 178.58 | 47.79 | 293.75 | 0.7821 | -312.2 | -107.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-29 16:59:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.51 | 14.74 | 180.69 | 49.89 | 292.13 | 0.8008 | -431.0 | -373.0 | |
| 1.43 | 3.21 | 1.15 | 2.58 | 15.58 | 179.37 | 48.57 | 293.64 | 0.7906 | -500.8 | -452.8 | |
| 0.00 | 1.43 | 0.00 | 1.14 | 15.66 | 179.11 | 48.31 | 293.84 | 0.7884 | -639.0 | -492.2 | |
| 0.00 | 0.89 | 0.00 | 0.71 | 15.23 | 178.83 | 48.04 | 293.43 | 0.7842 | -629.0 | -562.9 | |
| 0.00 | 3.21 | 0.00 | 2.46 | 15.29 | 177.00 | 46.21 | 294.24 | 0.7659 | 667.0 | 460.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
