SDO HMI 2011-04-30 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.44 | 64.00 | 7.42 | 32.84 | -18.33 | 120.65 | -5.72 | 158.84 | 0.2618 | -220.5 | -191.5 | |
|
previous
or next observation for the same group /

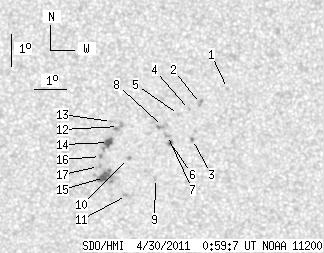

back to the solar disc SDO HMI 2011-04-30 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.50 | -16.37 | 123.80 | -2.57 | 168.37 | 0.2142 | 756.0 | 522.5 | |
| 0.00 | 3.21 | 0.00 | 1.63 | -16.83 | 122.94 | -3.43 | 165.21 | 0.2252 | 826.0 | 788.9 | |
| 0.00 | 1.43 | 0.00 | 0.73 | -17.94 | 122.67 | -3.70 | 165.39 | 0.2447 | 968.0 | 841.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -17.01 | 122.59 | -3.78 | 164.01 | 0.2298 | 950.0 | 706.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -17.17 | 122.24 | -4.13 | 162.82 | 0.2340 | 839.0 | 621.1 | |
| 1.52 | 2.32 | 0.77 | 1.19 | -18.03 | 121.97 | -4.40 | 162.90 | 0.2494 | 612.9 | 578.9 | |
| 0.00 | 3.39 | 0.00 | 1.73 | -17.82 | 121.88 | -4.49 | 162.29 | 0.2463 | 727.0 | 626.3 | |
| 0.00 | 4.81 | 0.00 | 2.46 | -17.54 | 121.72 | -4.65 | 161.35 | 0.2426 | 809.0 | 731.8 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -19.15 | 121.46 | -4.91 | 162.47 | 0.2699 | 835.0 | 607.0 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -18.52 | 120.61 | -5.76 | 158.83 | 0.2647 | -912.0 | -745.9 | |
| 0.00 | 2.32 | 0.00 | 1.20 | -19.68 | 120.51 | -5.86 | 160.06 | 0.2834 | -843.0 | -619.1 | |
| 0.00 | 4.99 | 0.00 | 2.55 | -17.53 | 120.33 | -6.04 | 156.31 | 0.2510 | -701.0 | -869.4 | |
| 0.00 | 1.34 | 0.00 | 0.68 | -17.37 | 120.11 | -6.26 | 155.29 | 0.2501 | -830.0 | -697.8 | |
| 5.70 | 8.20 | 2.93 | 4.21 | -18.02 | 119.99 | -6.38 | 155.99 | 0.2609 | -1027.5 | -865.8 | |
| 7.22 | 21.66 | 3.72 | 11.16 | -19.11 | 119.82 | -6.55 | 157.15 | 0.2788 | -1043.7 | -613.6 | |
| 0.00 | 1.34 | 0.00 | 0.69 | -18.45 | 119.72 | -6.65 | 155.81 | 0.2694 | -979.0 | -851.9 | |
| 0.00 | 2.85 | 0.00 | 1.47 | -18.77 | 119.64 | -6.73 | 156.06 | 0.2747 | -747.0 | -673.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
