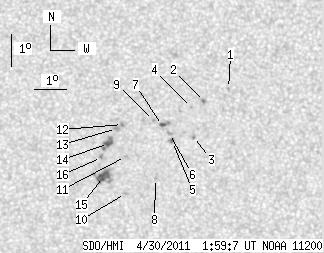

SDO HMI 2011-04-30 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.60 | 50.62 | 8.02 | 25.97 | -18.31 | 120.64 | -5.18 | 160.67 | 0.2584 | -170.7 | -239.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.41 | -16.40 | 123.81 | -2.00 | 170.90 | 0.2130 | 786.0 | 666.7 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -16.80 | 123.05 | -2.77 | 167.94 | 0.2221 | 1016.0 | 826.5 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -17.88 | 122.69 | -3.13 | 167.51 | 0.2414 | 958.0 | 698.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -16.98 | 122.64 | -3.18 | 166.41 | 0.2267 | 863.0 | 630.9 | |
| 0.89 | 2.50 | 0.46 | 1.28 | -18.03 | 122.02 | -3.80 | 165.12 | 0.2466 | 782.4 | 537.4 | |
| 0.00 | 2.05 | 0.00 | 1.05 | -17.78 | 121.93 | -3.89 | 164.50 | 0.2430 | 914.0 | 670.0 | |
| 1.69 | 4.37 | 0.86 | 2.23 | -17.53 | 121.71 | -4.11 | 163.38 | 0.2399 | 840.8 | 807.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -19.18 | 121.45 | -4.37 | 164.34 | 0.2679 | 775.0 | 603.4 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -17.38 | 121.43 | -4.39 | 162.10 | 0.2388 | 881.0 | 707.5 | |
| 0.00 | 1.52 | 0.00 | 0.78 | -19.64 | 120.47 | -5.35 | 161.65 | 0.2801 | -803.0 | -587.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.49 | 120.51 | -5.31 | 160.30 | 0.2616 | -834.0 | -633.7 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -17.49 | 120.44 | -5.38 | 158.62 | 0.2463 | -1069.0 | -850.0 | |
| 0.00 | 2.85 | 0.00 | 1.46 | -17.62 | 120.25 | -5.57 | 158.12 | 0.2494 | -1164.0 | -905.8 | |
| 3.30 | 8.29 | 1.69 | 4.25 | -18.08 | 119.98 | -5.84 | 157.90 | 0.2584 | -1063.9 | -944.2 | |
| 9.72 | 17.56 | 5.01 | 9.05 | -19.11 | 119.78 | -6.04 | 158.76 | 0.2756 | -993.0 | -736.1 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -18.51 | 119.74 | -6.08 | 157.77 | 0.2667 | -1004.0 | -862.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
