SDO HMI 2011-04-30 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.61 | 235.01 | 59.20 | 296.35 | 20.43 | 187.87 | 63.15 | 294.51 | 0.9184 | 111.6 | 92.5 | |
|
previous
or next observation for the same group /

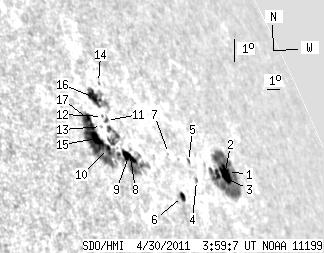

back to the solar disc SDO HMI 2011-04-30 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 81.31 | 3.29 | 123.08 | 20.15 | 192.91 | 68.19 | 292.98 | 0.9482 | 164.1 | -101.4 | |
| 8.74 | -1.00 | 13.22 | -1.00 | 20.03 | 192.53 | 67.82 | 292.93 | 0.9461 | -438.9 | 999999 | |
| 3.30 | -1.00 | 4.84 | -1.00 | 19.98 | 191.90 | 67.18 | 293.02 | 0.9427 | -670.2 | 999999 | |
| 0.00 | 2.14 | 0.00 | 2.88 | 19.65 | 189.93 | 65.21 | 293.11 | 0.9312 | -482.0 | -359.6 | |
| 0.00 | 2.14 | 0.00 | 2.88 | 20.26 | 189.80 | 65.08 | 293.78 | 0.9313 | -453.0 | -277.7 | |
| 3.30 | 4.19 | 4.16 | 5.28 | 19.02 | 188.42 | 63.70 | 292.80 | 0.9211 | -371.5 | -280.5 | |
| 0.00 | 0.53 | 0.00 | 0.68 | 20.42 | 188.42 | 63.70 | 294.29 | 0.9234 | -255.0 | -265.0 | |
| 0.00 | 1.96 | 0.00 | 2.27 | 20.33 | 185.62 | 60.91 | 294.91 | 0.9053 | -281.0 | -219.1 | |
| 8.38 | 34.68 | 9.59 | 39.88 | 20.12 | 185.42 | 60.70 | 294.75 | 0.9034 | 431.5 | 112.9 | |
| 1.69 | 80.96 | 1.87 | 88.56 | 20.30 | 184.23 | 59.51 | 295.27 | 0.8956 | 592.5 | 428.0 | |
| 1.34 | 2.05 | 1.51 | 2.32 | 21.26 | 184.73 | 60.01 | 296.16 | 0.9011 | 287.3 | 76.2 | |
| 0.00 | 0.80 | 0.00 | 0.90 | 21.38 | 184.55 | 59.83 | 296.34 | 0.9002 | 303.0 | 266.0 | |
| 0.00 | 0.98 | 0.00 | 1.09 | 21.02 | 184.25 | 59.53 | 296.05 | 0.8973 | 402.0 | 350.9 | |
| 0.00 | 1.16 | 0.00 | 1.35 | 22.54 | 185.12 | 60.40 | 297.41 | 0.9064 | 171.0 | 100.1 | |
| 7.31 | -10.00 | 7.96 | -10.00 | 20.59 | 183.65 | 58.93 | 295.76 | 0.8922 | 807.1 | 999999 | |
| 8.29 | 22.11 | 9.36 | 25.18 | 22.00 | 184.39 | 59.67 | 297.04 | 0.9004 | 436.8 | -89.1 | |
| 3.12 | -10.00 | 3.40 | -10.00 | 21.24 | 183.50 | 58.78 | 296.50 | 0.8926 | 542.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
