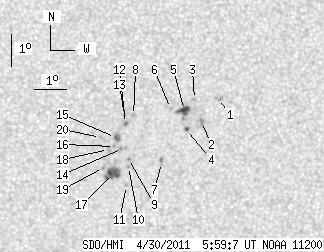

SDO HMI 2011-04-30 05:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.73 | 63.25 | 9.58 | 32.31 | -18.24 | 120.82 | -2.80 | 169.35 | 0.2473 | -265.8 | -248.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 05:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.66 | 0.00 | 1.86 | -16.92 | 123.16 | -0.47 | 177.96 | 0.2199 | 751.0 | 680.6 | |
| 0.00 | 4.37 | 0.00 | 2.22 | -17.64 | 122.62 | -1.01 | 175.86 | 0.2326 | 1138.0 | 742.4 | |
| 0.00 | 1.34 | 0.00 | 0.68 | -16.95 | 122.40 | -1.22 | 174.68 | 0.2213 | 967.0 | 675.2 | |
| 1.52 | 1.61 | 0.77 | 0.82 | -17.88 | 122.14 | -1.48 | 174.02 | 0.2375 | 815.2 | 640.5 | |
| 7.31 | 10.25 | 3.72 | 5.22 | -17.29 | 122.08 | -1.54 | 173.49 | 0.2276 | 983.0 | 661.7 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -17.23 | 121.64 | -1.98 | 171.61 | 0.2275 | 848.0 | 640.6 | |
| 0.00 | 3.03 | 0.00 | 1.55 | -18.91 | 121.33 | -2.29 | 171.48 | 0.2565 | 794.0 | 648.1 | |
| 0.00 | 1.96 | 0.00 | 1.00 | -17.44 | 120.46 | -3.16 | 167.01 | 0.2348 | -858.0 | -708.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.78 | 120.28 | -3.34 | 167.57 | 0.2576 | -776.0 | -640.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -19.03 | 120.27 | -3.35 | 167.77 | 0.2617 | -857.0 | -721.5 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -19.62 | 120.20 | -3.42 | 168.00 | 0.2718 | -724.0 | -577.0 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -17.69 | 120.20 | -3.42 | 166.25 | 0.2399 | -1136.0 | -1002.2 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -17.44 | 120.18 | -3.44 | 165.88 | 0.2359 | -864.0 | -680.9 | |
| 0.00 | 2.59 | 0.00 | 1.32 | -18.47 | 120.09 | -3.53 | 166.61 | 0.2532 | -978.0 | -879.1 | |
| 0.45 | 4.82 | 0.23 | 2.46 | -18.13 | 119.88 | -3.74 | 165.47 | 0.2484 | -1136.6 | -963.8 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -18.40 | 119.84 | -3.78 | 165.62 | 0.2531 | -1040.0 | -922.5 | |
| 9.45 | 16.23 | 4.86 | 8.34 | -19.25 | 119.79 | -3.83 | 166.27 | 0.2671 | -963.4 | -781.1 | |
| 0.00 | 2.59 | 0.00 | 1.32 | -18.50 | 119.65 | -3.97 | 165.02 | 0.2555 | -887.0 | -719.9 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -19.06 | 119.47 | -4.15 | 165.00 | 0.2654 | -804.0 | -605.7 | |
| 0.00 | 1.43 | 0.00 | 0.73 | -18.12 | 119.40 | -4.22 | 163.71 | 0.2505 | -843.0 | -462.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
