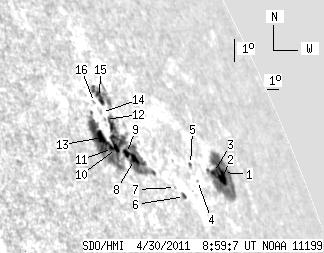

SDO HMI 2011-04-30 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.33 | 248.94 | 46.56 | 341.50 | 20.40 | 187.27 | 65.29 | 293.94 | 0.9310 | 172.4 | 62.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 68.30 | 2.21 | 118.91 | 20.17 | 192.99 | 71.01 | 292.44 | 0.9615 | 264.6 | -54.1 | |
| 4.81 | -1.00 | 8.35 | -1.00 | 19.95 | 192.55 | 70.57 | 292.29 | 0.9593 | -495.3 | 999999 | |
| 2.32 | -1.00 | 3.87 | -1.00 | 20.10 | 191.93 | 69.95 | 292.57 | 0.9566 | -614.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 1.23 | 19.71 | 190.10 | 68.12 | 292.53 | 0.9472 | -404.0 | -355.8 | |
| 0.45 | 1.87 | 0.68 | 2.85 | 20.22 | 189.96 | 67.98 | 293.09 | 0.9471 | -333.4 | -240.8 | |
| 1.87 | 2.41 | 2.64 | 3.39 | 19.07 | 188.47 | 66.49 | 292.21 | 0.9376 | -408.7 | -454.5 | |
| 0.00 | 0.80 | 0.00 | 1.11 | 19.32 | 187.95 | 65.97 | 292.59 | 0.9350 | -513.0 | -451.2 | |
| 3.30 | 147.84 | 4.15 | 180.46 | 20.06 | 185.40 | 63.42 | 293.96 | 0.9209 | 401.2 | 156.4 | |
| 2.94 | -8.00 | 3.65 | -8.00 | 20.23 | 184.95 | 62.97 | 294.25 | 0.9184 | 419.7 | 999999 | |
| 3.39 | -8.00 | 4.11 | -8.00 | 20.35 | 184.33 | 62.35 | 294.54 | 0.9147 | 490.1 | 999999 | |
| 1.34 | -8.00 | 1.61 | -8.00 | 20.33 | 184.03 | 62.05 | 294.59 | 0.9127 | 747.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.52 | 21.30 | 184.25 | 62.27 | 295.56 | 0.9159 | 488.0 | 424.0 | |
| 7.40 | -8.00 | 8.77 | -8.00 | 20.66 | 183.58 | 61.60 | 295.06 | 0.9104 | 810.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.20 | 21.52 | 184.14 | 62.16 | 295.83 | 0.9156 | 545.0 | 448.6 | |
| 5.26 | 23.09 | 6.52 | 28.88 | 22.04 | 184.39 | 62.41 | 296.30 | 0.9181 | 312.7 | -42.1 | |
| 0.00 | 1.60 | 0.00 | 1.95 | 21.83 | 183.88 | 61.90 | 296.23 | 0.9146 | 443.0 | 385.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
