SDO HMI 2011-04-30 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.05 | 68.30 | 8.21 | 34.88 | -18.19 | 121.08 | -0.90 | 176.72 | 0.2430 | -234.1 | -18.2 | |
|
previous
or next observation for the same group /

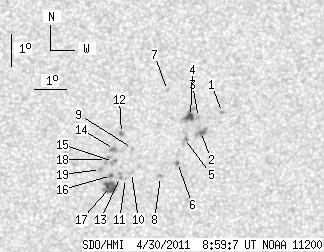

back to the solar disc SDO HMI 2011-04-30 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.68 | -17.00 | 123.37 | 1.39 | 186.02 | 0.2227 | 936.0 | 806.5 | |
| 0.00 | 7.22 | 0.00 | 3.68 | -17.59 | 122.68 | 0.70 | 182.90 | 0.2318 | 1119.0 | 866.7 | |
| 0.00 | 2.32 | 0.00 | 1.18 | -17.15 | 122.61 | 0.64 | 182.72 | 0.2243 | 918.0 | 772.2 | |
| 4.55 | 10.25 | 2.31 | 5.21 | -17.12 | 122.36 | 0.38 | 181.64 | 0.2236 | 1154.3 | 748.4 | |
| 0.00 | 7.13 | 0.00 | 3.63 | -17.81 | 122.17 | 0.19 | 180.79 | 0.2352 | 749.0 | 639.3 | |
| 0.80 | 1.52 | 0.41 | 0.77 | -18.55 | 121.95 | -0.03 | 179.89 | 0.2479 | 784.8 | 634.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -16.32 | 121.64 | -0.34 | 178.43 | 0.2099 | -886.0 | -700.2 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -18.99 | 121.41 | -0.57 | 177.88 | 0.2555 | 873.0 | 659.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.11 | 120.52 | -1.46 | 174.23 | 0.2417 | -854.0 | -621.2 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -18.86 | 120.48 | -1.50 | 174.40 | 0.2544 | -805.0 | -626.0 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -19.05 | 120.29 | -1.69 | 173.77 | 0.2579 | -519.0 | -465.3 | |
| 0.00 | 2.05 | 0.00 | 1.04 | -17.65 | 120.18 | -1.80 | 172.62 | 0.2345 | -1228.0 | -1002.7 | |
| 0.00 | 2.59 | 0.00 | 1.33 | -18.99 | 120.13 | -1.85 | 173.16 | 0.2571 | -362.0 | -648.1 | |
| 0.00 | 4.64 | 0.00 | 2.37 | -18.14 | 119.95 | -2.03 | 172.02 | 0.2434 | -1209.0 | -923.5 | |
| 0.00 | 2.32 | 0.00 | 1.19 | -18.52 | 119.91 | -2.07 | 172.10 | 0.2497 | -1089.0 | -891.8 | |
| 1.25 | 2.05 | 0.64 | 1.05 | -18.95 | 119.84 | -2.14 | 172.09 | 0.2572 | -972.6 | -928.8 | |
| 9.45 | 12.75 | 4.85 | 6.55 | -19.30 | 119.81 | -2.17 | 172.15 | 0.2631 | -982.9 | -768.5 | |
| 0.00 | 3.48 | 0.00 | 1.78 | -18.45 | 119.69 | -2.29 | 171.22 | 0.2492 | -817.0 | -796.1 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -18.77 | 119.49 | -2.48 | 170.70 | 0.2550 | -877.0 | -767.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
