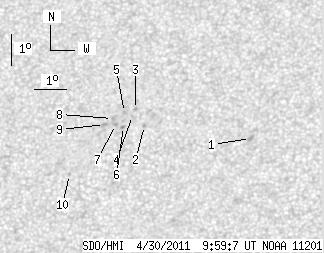

SDO HMI 2011-04-30 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.66 | 0.00 | 8.79 | 14.05 | 113.49 | -7.94 | 23.00 | 0.3435 | -895.1 | -704.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.12 | 0.00 | 1.63 | 13.66 | 116.89 | -4.54 | 14.03 | 0.3184 | -841.0 | -713.3 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 14.11 | 113.57 | -7.87 | 22.89 | 0.3427 | -969.0 | -747.1 | |
| 0.00 | 1.60 | 0.00 | 0.85 | 14.62 | 113.26 | -8.17 | 23.06 | 0.3524 | -981.0 | -742.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 14.43 | 113.18 | -8.25 | 23.51 | 0.3501 | -827.0 | -648.0 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 14.53 | 112.92 | -8.51 | 24.03 | 0.3533 | -848.0 | -720.9 | |
| 0.00 | 1.60 | 0.00 | 0.85 | 14.08 | 112.91 | -8.52 | 24.61 | 0.3467 | -1111.0 | -830.7 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 14.15 | 112.65 | -8.78 | 25.17 | 0.3495 | -901.0 | -688.1 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 14.34 | 112.55 | -8.88 | 25.19 | 0.3530 | -790.0 | -630.5 | |
| 0.00 | 2.41 | 0.00 | 1.27 | 14.15 | 112.30 | -9.13 | 26.03 | 0.3520 | -932.0 | -692.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 12.58 | 111.27 | -10.16 | 30.83 | 0.3375 | -751.0 | -561.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
