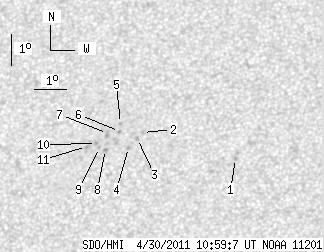

SDO HMI 2011-04-30 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.57 | 0.00 | 9.25 | 14.37 | 113.43 | -7.46 | 21.46 | 0.3446 | -858.4 | -698.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.76 | 116.97 | -3.92 | 12.11 | 0.3175 | -880.0 | -674.8 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 14.61 | 114.04 | -6.84 | 19.66 | 0.3443 | -707.0 | -517.5 | |
| 0.00 | 2.14 | 0.00 | 1.13 | 14.42 | 113.89 | -7.00 | 20.26 | 0.3422 | -887.0 | -687.7 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 14.14 | 113.61 | -7.27 | 21.29 | 0.3395 | -967.0 | -707.6 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 14.90 | 113.34 | -7.55 | 21.18 | 0.3528 | -766.0 | -653.3 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 14.65 | 113.31 | -7.57 | 21.51 | 0.3491 | -960.0 | -750.7 | |
| 0.00 | 3.03 | 0.00 | 1.60 | 14.59 | 112.94 | -7.95 | 22.54 | 0.3505 | -792.0 | -735.1 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 14.08 | 112.89 | -7.99 | 23.25 | 0.3431 | -1049.0 | -803.0 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.15 | 112.70 | -8.18 | 23.66 | 0.3453 | -759.0 | -667.4 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 14.27 | 112.60 | -8.28 | 23.76 | 0.3479 | -875.0 | -718.5 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 14.18 | 112.29 | -8.59 | 24.66 | 0.3486 | -800.0 | -704.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
