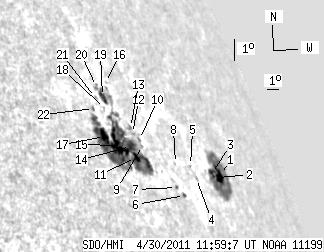

SDO HMI 2011-04-30 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.13 | 240.04 | 68.44 | 352.49 | 20.41 | 187.16 | 66.83 | 293.60 | 0.9396 | 155.8 | 31.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 62.76 | 4.86 | 120.17 | 20.09 | 192.91 | 72.58 | 292.08 | 0.9681 | 315.8 | -14.5 | |
| 3.83 | -1.00 | 7.29 | -1.00 | 19.97 | 192.55 | 72.21 | 292.02 | 0.9665 | -501.8 | 999999 | |
| 4.10 | -1.00 | 7.53 | -1.00 | 20.05 | 191.91 | 71.57 | 292.21 | 0.9639 | -638.8 | 999999 | |
| 0.00 | 1.78 | 0.00 | 2.96 | 19.76 | 190.12 | 69.79 | 292.25 | 0.9555 | -183.0 | -181.5 | |
| 0.00 | 0.89 | 0.00 | 1.47 | 20.17 | 189.97 | 69.64 | 292.70 | 0.9552 | -356.0 | -302.5 | |
| 0.62 | 1.60 | 0.94 | 2.43 | 19.09 | 188.42 | 68.08 | 291.89 | 0.9463 | -401.3 | -329.5 | |
| 0.00 | 1.16 | 0.00 | 1.72 | 19.31 | 187.92 | 67.59 | 292.22 | 0.9439 | -502.0 | -473.9 | |
| 0.00 | 0.53 | 0.00 | 0.83 | 20.14 | 188.58 | 68.24 | 292.95 | 0.9483 | -286.0 | -294.0 | |
| 0.00 | 0.53 | 0.00 | 0.75 | 20.56 | 186.19 | 65.86 | 293.90 | 0.9361 | -494.0 | -451.3 | |
| 0.00 | 1.87 | 0.00 | 2.60 | 20.75 | 186.12 | 65.78 | 294.12 | 0.9359 | -547.0 | -524.3 | |
| 2.67 | 146.01 | 3.58 | 189.19 | 20.10 | 185.27 | 64.94 | 293.63 | 0.9301 | 404.7 | 109.1 | |
| 0.00 | 1.87 | 0.00 | 2.57 | 20.92 | 185.71 | 65.37 | 294.39 | 0.9338 | -457.0 | -449.4 | |
| 0.00 | 2.14 | 0.00 | 2.93 | 21.12 | 185.72 | 65.38 | 294.59 | 0.9342 | -447.0 | -438.4 | |
| 3.83 | -11.00 | 5.11 | -11.00 | 20.46 | 185.17 | 64.83 | 294.03 | 0.9301 | -531.3 | 999999 | |
| 16.85 | -11.00 | 21.62 | -11.00 | 20.42 | 184.16 | 63.83 | 294.23 | 0.9240 | 560.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.21 | 22.56 | 185.02 | 64.69 | 296.26 | 0.9325 | -128.0 | -169.2 | |
| 8.47 | -11.00 | 10.60 | -11.00 | 20.66 | 183.40 | 63.06 | 294.68 | 0.9197 | 808.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.39 | 21.64 | 184.16 | 63.83 | 295.51 | 0.9260 | 540.0 | 466.5 | |
| 5.26 | 12.12 | 6.91 | 16.07 | 22.05 | 184.35 | 64.02 | 295.89 | 0.9278 | 298.4 | -222.9 | |
| 0.00 | 2.14 | 0.00 | 2.80 | 22.37 | 184.17 | 63.84 | 296.27 | 0.9273 | 391.0 | 331.9 | |
| 0.00 | 1.16 | 0.00 | 1.49 | 21.97 | 183.77 | 63.44 | 295.96 | 0.9242 | 403.0 | 393.4 | |
| 0.00 | 1.52 | 0.00 | 1.91 | 21.58 | 183.31 | 62.97 | 295.67 | 0.9207 | 574.0 | 470.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
