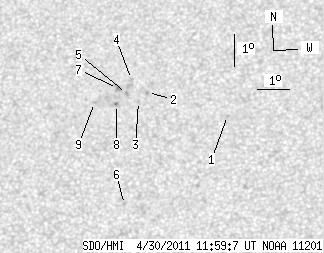

SDO HMI 2011-04-30 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.64 | 0.00 | 7.18 | 14.13 | 113.42 | -6.91 | 20.32 | 0.3376 | -854.0 | -702.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.67 | 116.42 | -3.91 | 12.17 | 0.3159 | -753.0 | -593.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 14.42 | 113.91 | -6.43 | 18.74 | 0.3390 | -942.0 | -755.0 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.13 | 113.63 | -6.70 | 19.77 | 0.3361 | -915.0 | -661.2 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 14.84 | 113.39 | -6.94 | 19.70 | 0.3483 | -850.0 | -703.9 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 14.39 | 113.25 | -7.09 | 20.53 | 0.3422 | -940.0 | -796.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 10.89 | 113.28 | -7.05 | 24.83 | 0.2884 | -728.0 | -521.2 | |
| 0.00 | 3.39 | 0.00 | 1.79 | 14.55 | 112.96 | -7.38 | 21.12 | 0.3464 | -921.0 | -732.8 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 14.04 | 112.94 | -7.39 | 21.72 | 0.3387 | -896.0 | -682.9 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 14.11 | 112.25 | -8.08 | 23.45 | 0.3442 | -741.0 | -683.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
