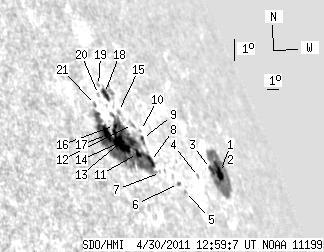

SDO HMI 2011-04-30 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.74 | 241.54 | 65.71 | 360.88 | 20.39 | 187.14 | 67.35 | 293.46 | 0.9423 | 179.8 | 31.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.03 | 59.18 | 6.09 | 117.22 | 20.14 | 192.95 | 73.17 | 292.02 | 0.9705 | 307.6 | -35.9 | |
| 5.17 | -1.00 | 10.18 | -1.00 | 20.07 | 192.54 | 72.76 | 292.03 | 0.9688 | -401.2 | 999999 | |
| 1.60 | -1.00 | 3.02 | -1.00 | 20.12 | 191.84 | 72.06 | 292.19 | 0.9660 | -469.2 | 999999 | |
| 0.00 | 1.60 | 0.00 | 2.74 | 19.74 | 190.21 | 70.43 | 292.10 | 0.9585 | -205.0 | -135.9 | |
| 0.00 | 1.07 | 0.00 | 1.66 | 19.12 | 188.42 | 68.63 | 291.82 | 0.9491 | -461.0 | -368.1 | |
| 0.36 | 1.52 | 0.54 | 2.32 | 19.35 | 188.01 | 68.22 | 292.14 | 0.9473 | -510.5 | -411.2 | |
| 0.00 | 0.71 | 0.00 | 1.03 | 19.62 | 186.71 | 66.92 | 292.68 | 0.9407 | -306.0 | -262.6 | |
| 3.48 | 153.84 | 4.92 | 203.68 | 19.94 | 186.16 | 66.37 | 293.14 | 0.9381 | -259.4 | 106.0 | |
| 1.52 | 3.57 | 2.16 | 5.07 | 20.69 | 186.15 | 66.37 | 293.92 | 0.9391 | -454.1 | -383.7 | |
| 0.00 | 0.98 | 0.00 | 1.41 | 20.96 | 186.22 | 66.44 | 294.18 | 0.9398 | -459.0 | -423.5 | |
| 1.96 | -8.00 | 2.68 | -8.00 | 20.14 | 185.29 | 65.50 | 293.54 | 0.9334 | 346.4 | 999999 | |
| 0.00 | 2.85 | 0.00 | 4.01 | 21.12 | 185.72 | 65.93 | 294.47 | 0.9373 | -438.0 | -434.0 | |
| 1.60 | -8.00 | 2.13 | -8.00 | 20.51 | 184.42 | 64.64 | 294.13 | 0.9290 | -339.3 | 999999 | |
| 14.35 | -8.00 | 18.79 | -8.00 | 20.42 | 184.13 | 64.34 | 294.11 | 0.9271 | 579.8 | 999999 | |
| 0.00 | 1.69 | 0.00 | 2.32 | 21.50 | 184.94 | 65.15 | 295.04 | 0.9334 | -363.0 | -339.2 | |
| 0.80 | -8.00 | 1.06 | -8.00 | 20.98 | 184.20 | 64.41 | 294.68 | 0.9284 | 401.7 | 999999 | |
| 6.77 | -8.00 | 8.64 | -8.00 | 20.63 | 183.40 | 63.62 | 294.51 | 0.9230 | 838.3 | 999999 | |
| 4.10 | 9.63 | 5.50 | 13.03 | 22.05 | 184.33 | 64.54 | 295.76 | 0.9308 | 299.7 | -156.4 | |
| 0.00 | 1.07 | 0.00 | 1.42 | 22.30 | 184.09 | 64.30 | 296.08 | 0.9298 | 413.0 | 348.4 | |
| 0.00 | 2.05 | 0.00 | 2.69 | 21.98 | 183.82 | 64.03 | 295.82 | 0.9277 | 432.0 | 405.7 | |
| 0.00 | 1.78 | 0.00 | 2.28 | 21.61 | 183.29 | 63.51 | 295.57 | 0.9240 | 566.0 | 442.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
