SDO HMI 2011-04-30 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.78 | 70.60 | 10.61 | 36.02 | -18.21 | 121.07 | 1.28 | 185.26 | 0.2444 | -40.7 | -193.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

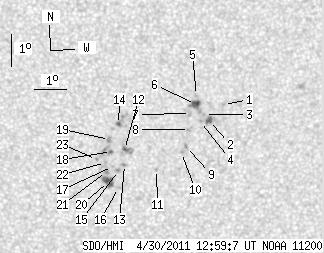

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.86 | -17.04 | 123.45 | 3.67 | 195.45 | 0.2308 | 978.0 | 624.9 | |
| 3.48 | 5.79 | 1.77 | 2.95 | -17.53 | 123.02 | 3.24 | 193.18 | 0.2372 | 986.1 | 667.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -17.35 | 122.86 | 3.07 | 192.72 | 0.2335 | 895.0 | 705.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -17.57 | 122.74 | 2.95 | 192.02 | 0.2367 | 902.0 | 730.8 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -16.76 | 122.60 | 2.81 | 192.23 | 0.2228 | 920.0 | 639.5 | |
| 5.17 | 9.54 | 2.63 | 4.85 | -17.04 | 122.57 | 2.78 | 191.84 | 0.2273 | 1087.8 | 852.0 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -17.32 | 122.42 | 2.63 | 190.96 | 0.2315 | 773.0 | 675.9 | |
| 0.00 | 2.50 | 0.00 | 1.27 | -17.82 | 122.39 | 2.61 | 190.45 | 0.2397 | 683.0 | 638.4 | |
| 0.00 | 2.14 | 0.00 | 1.09 | -18.34 | 122.30 | 2.52 | 189.72 | 0.2483 | 797.0 | 606.7 | |
| 0.00 | 1.34 | 0.00 | 0.68 | -18.53 | 122.15 | 2.36 | 189.00 | 0.2510 | 867.0 | 598.9 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -19.06 | 121.36 | 1.57 | 185.78 | 0.2582 | 757.0 | 523.1 | |
| 1.52 | 5.79 | 0.77 | 2.96 | -18.44 | 120.33 | 0.55 | 182.11 | 0.2465 | -1067.6 | -813.2 | |
| 0.00 | 1.96 | 0.00 | 1.00 | -18.91 | 120.33 | 0.55 | 182.05 | 0.2544 | -923.0 | -745.2 | |
| 1.16 | 5.88 | 0.59 | 2.99 | -17.66 | 120.14 | 0.35 | 181.45 | 0.2331 | -1031.9 | -787.2 | |
| 0.00 | 1.96 | 0.00 | 1.00 | -19.10 | 120.14 | 0.36 | 181.32 | 0.2575 | -905.0 | -777.5 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -19.63 | 120.14 | 0.36 | 181.27 | 0.2665 | -698.0 | -488.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.97 | 119.95 | 0.17 | 180.61 | 0.2553 | -870.0 | -714.4 | |
| 1.07 | 6.33 | 0.55 | 3.23 | -18.50 | 119.92 | 0.13 | 180.51 | 0.2474 | -968.1 | -860.9 | |
| 0.00 | 3.12 | 0.00 | 1.59 | -18.13 | 119.85 | 0.07 | 180.27 | 0.2410 | -1065.0 | -944.6 | |
| 8.38 | 9.45 | 4.30 | 4.85 | -19.44 | 119.82 | 0.04 | 180.13 | 0.2632 | -933.4 | -706.8 | |
| 0.00 | 2.32 | 0.00 | 1.19 | -19.13 | 119.76 | -0.03 | 179.90 | 0.2579 | -1168.0 | -931.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.85 | 119.73 | -0.06 | 179.78 | 0.2532 | -856.0 | -663.1 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -18.75 | 119.44 | -0.35 | 178.70 | 0.2516 | -841.0 | -715.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
