SDO HMI 2011-04-30 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.36 | 64.61 | 6.83 | 33.07 | -18.53 | 120.74 | 2.06 | 188.09 | 0.2512 | -176.5 | -462.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

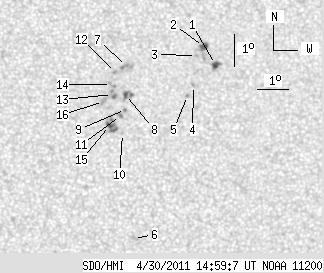

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.56 | 5.26 | 1.82 | 2.68 | -17.52 | 123.09 | 4.40 | 197.67 | 0.2424 | 1017.1 | 717.4 | |
| 4.10 | 9.18 | 2.09 | 4.67 | -16.97 | 122.70 | 4.01 | 196.89 | 0.2314 | 1134.4 | 773.2 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -17.25 | 122.48 | 3.80 | 195.69 | 0.2349 | 890.0 | 712.2 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.18 | 122.40 | 3.72 | 194.35 | 0.2498 | 794.0 | 557.7 | |
| 0.00 | 1.34 | 0.00 | 0.68 | -18.49 | 122.22 | 3.54 | 193.36 | 0.2542 | 947.0 | 721.3 | |
| 0.00 | 2.94 | 0.00 | 1.54 | -23.00 | 120.55 | 1.87 | 185.34 | 0.3244 | -35.0 | -144.8 | |
| 0.00 | 4.99 | 0.00 | 2.54 | -17.60 | 120.27 | 1.58 | 186.51 | 0.2335 | -938.0 | -890.4 | |
| 2.76 | 7.31 | 1.41 | 3.74 | -18.47 | 120.24 | 1.56 | 186.00 | 0.2482 | -1108.3 | -831.5 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -18.93 | 120.25 | 1.56 | 185.82 | 0.2560 | -976.0 | -816.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -19.69 | 120.16 | 1.48 | 185.20 | 0.2685 | -760.0 | -513.3 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -19.12 | 120.09 | 1.41 | 185.16 | 0.2590 | -977.0 | -858.6 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -17.78 | 119.92 | 1.24 | 185.02 | 0.2361 | -931.0 | -790.4 | |
| 0.00 | 4.46 | 0.00 | 2.28 | -18.47 | 119.83 | 1.15 | 184.42 | 0.2475 | -788.0 | -944.6 | |
| 0.00 | 3.30 | 0.00 | 1.68 | -18.16 | 119.80 | 1.11 | 184.39 | 0.2422 | -805.0 | -789.4 | |
| 2.94 | 13.72 | 1.51 | 7.05 | -19.44 | 119.74 | 1.06 | 183.80 | 0.2638 | -1063.5 | -774.7 | |
| 0.00 | 3.65 | 0.00 | 1.87 | -18.69 | 119.55 | 0.86 | 183.27 | 0.2509 | -797.0 | -738.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
