SDO HMI 2011-04-30 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.94 | 0.00 | 6.79 | 14.06 | 113.23 | -5.45 | 16.38 | 0.3286 | -902.0 | -747.0 | |
|
previous
or next observation for the same group /

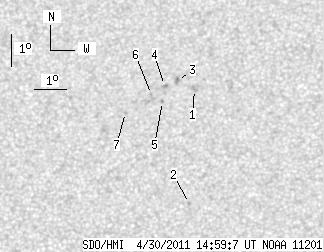

back to the solar disc SDO HMI 2011-04-30 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.50 | 0.00 | 1.31 | 14.40 | 113.97 | -4.71 | 13.98 | 0.3307 | -957.0 | -733.1 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 10.81 | 113.89 | -4.80 | 17.57 | 0.2734 | -833.0 | -634.1 | |
| 0.00 | 3.12 | 0.00 | 1.64 | 14.70 | 113.44 | -5.25 | 15.26 | 0.3376 | -949.0 | -798.9 | |
| 0.00 | 2.32 | 0.00 | 1.22 | 14.54 | 113.03 | -5.65 | 16.51 | 0.3370 | -846.0 | -756.0 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 14.03 | 112.98 | -5.70 | 17.10 | 0.3292 | -1029.0 | -813.9 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 14.25 | 112.63 | -6.05 | 17.87 | 0.3344 | -923.0 | -756.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 13.69 | 111.83 | -6.85 | 20.65 | 0.3300 | -777.0 | -637.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
