SDO HMI 2011-04-30 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.19 | 29.32 | 14.36 | 32.40 | 15.37 | 179.01 | 60.87 | 289.58 | 0.8953 | -24.1 | -259.7 | |
|
previous
or next observation for the same group /

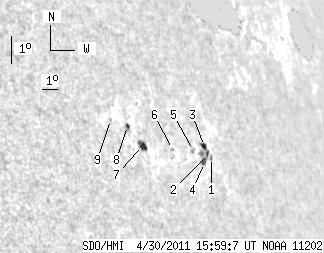

back to the solar disc SDO HMI 2011-04-30 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 1.89 | 15.25 | 180.88 | 62.74 | 288.98 | 0.9087 | -75.0 | -57.8 | |
| 1.25 | 14.53 | 1.46 | 16.83 | 15.33 | 180.64 | 62.51 | 289.12 | 0.9073 | -431.3 | -492.5 | |
| 2.50 | -2.00 | 2.91 | -2.00 | 15.57 | 180.57 | 62.44 | 289.40 | 0.9072 | -354.5 | 999999 | |
| 2.85 | -2.00 | 3.28 | -2.00 | 15.05 | 180.29 | 62.16 | 288.90 | 0.9044 | -532.1 | 999999 | |
| 0.00 | 2.05 | 0.00 | 2.32 | 15.39 | 179.73 | 61.60 | 289.40 | 0.9010 | -662.0 | -485.1 | |
| 0.00 | 0.80 | 0.00 | 0.87 | 15.33 | 178.34 | 60.21 | 289.67 | 0.8907 | 283.0 | 216.0 | |
| 4.90 | 7.31 | 5.00 | 7.46 | 15.33 | 176.49 | 58.36 | 290.15 | 0.8765 | 407.2 | 119.0 | |
| 1.69 | 2.05 | 1.71 | 2.07 | 15.93 | 175.86 | 57.73 | 290.98 | 0.8728 | 541.2 | 466.0 | |
| 0.00 | 0.98 | 0.00 | 0.96 | 16.06 | 174.93 | 56.79 | 291.39 | 0.8655 | 457.0 | 441.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
