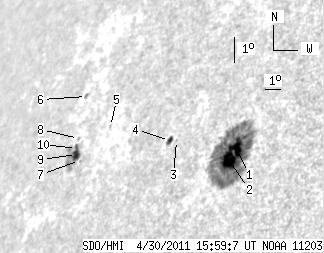

SDO HMI 2011-04-30 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.77 | 216.71 | 33.69 | 211.79 | 17.92 | 62.24 | -55.89 | 66.20 | 0.8609 | -347.6 | -165.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.25 | 183.66 | 9.48 | 170.46 | 17.97 | 64.20 | -53.94 | 65.58 | 0.8466 | -847.0 | -209.3 | |
| 14.61 | -1.00 | 13.56 | -1.00 | 17.60 | 63.98 | -54.15 | 66.07 | 0.8473 | -871.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.73 | 18.46 | 60.54 | -57.59 | 66.18 | 0.8773 | 352.0 | 327.1 | |
| 3.03 | 4.01 | 3.14 | 4.16 | 18.49 | 60.10 | -58.03 | 66.28 | 0.8807 | 295.9 | 339.3 | |
| 0.00 | 1.07 | 0.00 | 1.28 | 19.23 | 55.84 | -62.29 | 66.64 | 0.9122 | 330.0 | 290.8 | |
| 0.00 | 1.60 | 0.00 | 2.14 | 20.39 | 53.25 | -64.89 | 66.06 | 0.9302 | 140.0 | 130.1 | |
| 0.00 | 1.07 | 0.00 | 1.34 | 18.23 | 54.31 | -63.82 | 68.08 | 0.9205 | 614.0 | 483.8 | |
| 0.00 | 0.80 | 0.00 | 1.04 | 18.99 | 53.71 | -64.42 | 67.42 | 0.9254 | 186.0 | 162.0 | |
| 4.81 | 23.79 | 6.14 | 30.64 | 18.45 | 53.94 | -64.19 | 67.93 | 0.9231 | 545.8 | -25.2 | |
| 1.07 | -9.00 | 1.37 | -9.00 | 18.66 | 53.80 | -64.33 | 67.75 | 0.9243 | 365.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
