SDO HMI 2011-04-30 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 27.98 | 1.13 | 15.01 | 17.25 | 111.56 | -5.47 | 13.77 | 0.3789 | -448.3 | -259.8 | |
|
previous
or next observation for the same group /

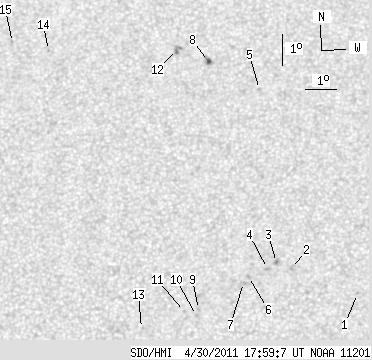

back to the solar disc SDO HMI 2011-04-30 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.51 | 13.66 | 116.07 | -0.96 | 3.03 | 0.3092 | -682.0 | -554.2 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 14.46 | 114.01 | -3.02 | 9.04 | 0.3260 | -942.0 | -720.3 | |
| 0.00 | 2.67 | 0.00 | 1.40 | 14.65 | 113.54 | -3.49 | 10.32 | 0.3305 | -1114.0 | -770.1 | |
| 0.00 | 2.23 | 0.00 | 1.17 | 14.46 | 113.26 | -3.77 | 11.23 | 0.3283 | -863.0 | -654.9 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 20.28 | 112.88 | -4.15 | 9.29 | 0.4222 | 626.0 | 532.3 | |
| 0.00 | 1.87 | 0.00 | 0.98 | 14.21 | 112.67 | -4.36 | 13.11 | 0.3262 | -896.0 | -733.1 | |
| 0.00 | 2.32 | 0.00 | 1.21 | 14.02 | 112.52 | -4.51 | 13.69 | 0.3238 | -704.0 | -675.1 | |
| 2.05 | 4.01 | 1.13 | 2.21 | 21.23 | 111.19 | -5.83 | 12.44 | 0.4419 | -963.8 | -719.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.17 | 111.13 | -5.90 | 18.50 | 0.3166 | -912.0 | -709.9 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 12.98 | 111.07 | -5.95 | 18.86 | 0.3140 | -781.0 | -646.7 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 13.11 | 110.70 | -6.33 | 19.82 | 0.3181 | -916.0 | -722.7 | |
| 0.00 | 5.08 | 0.00 | 2.82 | 21.64 | 110.16 | -6.86 | 14.29 | 0.4518 | 753.0 | 704.6 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 12.59 | 109.37 | -7.66 | 24.23 | 0.3183 | -582.0 | -506.2 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 21.66 | 105.92 | -11.11 | 22.35 | 0.4728 | 797.0 | 680.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 21.95 | 104.70 | -12.33 | 24.25 | 0.4843 | 522.0 | 450.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
