SDO HMI 2011-04-30 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.02 | 33.43 | 1.67 | 17.97 | 17.60 | 111.19 | -5.28 | 12.76 | 0.3843 | -420.6 | -260.4 | |
|
previous
or next observation for the same group /

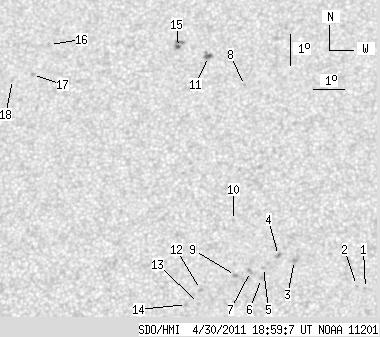

back to the solar disc SDO HMI 2011-04-30 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.60 | 13.63 | 116.29 | -0.18 | 0.57 | 0.3082 | -842.0 | -645.8 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 13.72 | 116.01 | -0.46 | 1.45 | 0.3099 | -755.0 | -655.4 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 14.52 | 114.08 | -2.39 | 7.17 | 0.3256 | -839.0 | -755.5 | |
| 0.00 | 2.32 | 0.00 | 1.21 | 14.68 | 113.58 | -2.90 | 8.57 | 0.3294 | -1010.0 | -799.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 14.30 | 113.11 | -3.36 | 10.13 | 0.3244 | -797.0 | -631.3 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 13.95 | 113.06 | -3.42 | 10.50 | 0.3189 | -822.0 | -607.2 | |
| 0.00 | 2.23 | 0.00 | 1.17 | 14.18 | 112.71 | -3.76 | 11.39 | 0.3236 | -858.0 | -754.4 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 20.22 | 112.39 | -4.08 | 9.17 | 0.4210 | 559.0 | 528.2 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 14.05 | 112.24 | -4.23 | 12.84 | 0.3232 | -919.0 | -718.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.81 | 112.15 | -4.33 | 11.96 | 0.3518 | -663.0 | -448.8 | |
| 1.51 | 4.46 | 0.83 | 2.46 | 21.19 | 111.19 | -5.28 | 11.30 | 0.4395 | -993.7 | -757.7 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 13.62 | 111.16 | -5.31 | 16.37 | 0.3207 | -829.0 | -660.7 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 13.17 | 111.11 | -5.36 | 16.93 | 0.3139 | -880.0 | -681.6 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 13.14 | 110.74 | -5.74 | 18.06 | 0.3153 | -803.0 | -639.8 | |
| 1.51 | 5.97 | 0.84 | 3.31 | 21.50 | 110.21 | -6.27 | 13.18 | 0.4475 | 904.2 | 635.2 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 21.65 | 105.96 | -10.51 | 21.27 | 0.4693 | 583.0 | 487.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 20.65 | 105.47 | -11.00 | 23.04 | 0.4580 | 870.0 | 664.5 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 20.50 | 104.83 | -11.64 | 24.38 | 0.4598 | 639.0 | 546.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
