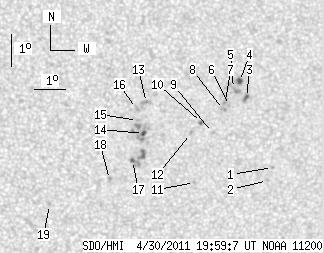

SDO HMI 2011-04-30 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.03 | 68.36 | 3.61 | 35.08 | -18.42 | 121.09 | 5.17 | 199.27 | 0.2625 | 40.3 | -240.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.42 | -19.67 | 124.26 | 8.34 | 207.10 | 0.3010 | 863.0 | 661.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -20.08 | 124.12 | 8.20 | 206.08 | 0.3060 | 739.0 | 632.8 | |
| 0.80 | 3.83 | 0.41 | 1.97 | -17.50 | 123.32 | 7.40 | 208.12 | 0.2618 | 1026.8 | 799.1 | |
| 2.67 | 4.19 | 1.37 | 2.14 | -17.00 | 123.08 | 7.16 | 208.28 | 0.2526 | 1131.2 | 862.1 | |
| 0.00 | 7.75 | 0.00 | 3.97 | -17.22 | 122.89 | 6.97 | 207.26 | 0.2544 | 1011.0 | 813.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -17.75 | 122.79 | 6.87 | 205.94 | 0.2615 | 768.0 | 668.8 | |
| 0.00 | 2.50 | 0.00 | 1.28 | -17.63 | 122.65 | 6.74 | 205.72 | 0.2587 | 678.0 | 588.0 | |
| 0.00 | 2.32 | 0.00 | 1.19 | -17.88 | 122.60 | 6.68 | 205.11 | 0.2620 | 748.0 | 681.3 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -18.59 | 122.28 | 6.36 | 202.91 | 0.2708 | 516.0 | 404.6 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -18.29 | 121.91 | 5.99 | 202.19 | 0.2637 | -1027.0 | -858.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -20.16 | 121.76 | 5.84 | 199.16 | 0.2921 | -774.0 | -570.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.63 | 121.57 | 5.65 | 200.56 | 0.2670 | 828.0 | 728.2 | |
| 0.00 | 3.92 | 0.00 | 2.00 | -17.68 | 120.14 | 4.22 | 196.79 | 0.2440 | -1120.0 | -820.5 | |
| 2.05 | 17.47 | 1.05 | 8.95 | -18.64 | 120.07 | 4.15 | 195.41 | 0.2593 | -1035.9 | -831.9 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.24 | 119.87 | 3.95 | 195.13 | 0.2518 | -977.0 | -746.7 | |
| 0.00 | 2.58 | 0.00 | 1.32 | -17.86 | 119.83 | 3.91 | 195.39 | 0.2455 | -984.0 | -786.5 | |
| 1.51 | 11.59 | 0.78 | 5.96 | -19.48 | 119.74 | 3.82 | 193.42 | 0.2717 | -935.6 | -810.3 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -20.08 | 119.01 | 3.09 | 190.51 | 0.2790 | -888.0 | -625.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -20.87 | 117.09 | 1.17 | 183.81 | 0.2882 | -771.0 | -535.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
